USS Lafayette 1/200

Discussion in 'Ship & Watercraft Models' started by Nothing, Dec 28, 2009.

  1. Nothing

    Nothing Longtime Member

    well its probably been a good year scince ive done any kinda build thread so bear with me.
    kit is 9 pages, with 1 page for stand and 1 page with stand and sail for the USS John Adams.

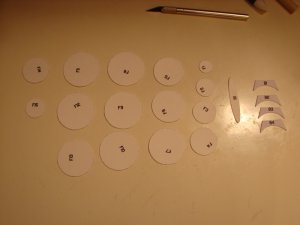

    there are a lot of formers and not sure if its overkill or not yet. but i laminated them all to 1mm. (im using 90lbs paper, which is new for me as i usually work in the 65 lbs range.)
    sub 001.jpg

    the parts have standard flaps but i prefer butt joining so i made my own.
    sub 002.jpg

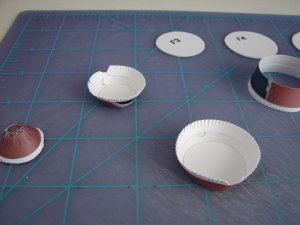

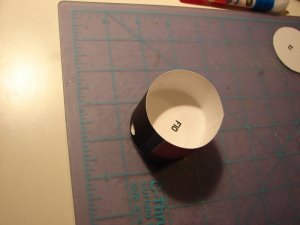

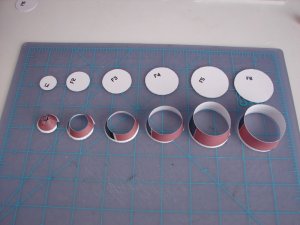

    started at the front rolled the sections.
    sub 003.jpg

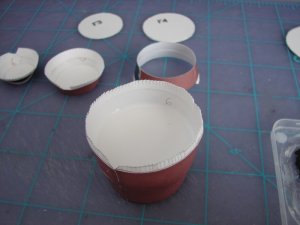

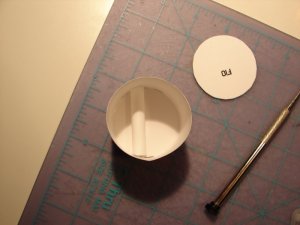

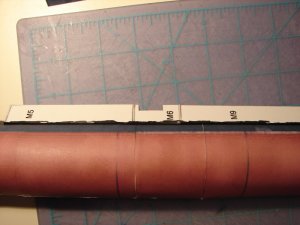

    now you can put the sections together using no flaps and just the formers. the formers fit perfect into each section but using the inside joiners throws them off a bit.
    sub 004.jpg

    now you could fold the flaps to 90 degrees and glue to the placed former but i glued the sections together and dropped the formers in got a good placement and glued in place.
    sub 005.jpg

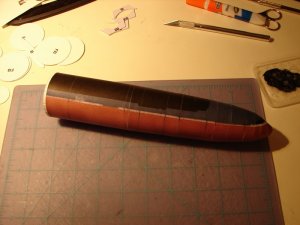

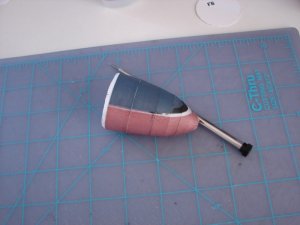

    and the bow section is done. id like to note that each section was a tight fit.
    sub 006.jpg

    i usually use markers on the edges but these colors are not typical and would stand out. when i get the hull all together i will go back with watercolor(which i can mix to match) and clean it up.
  2. ekuth

    ekuth Active Member

    Looking good so far!
  3. Nothing

    Nothing Longtime Member

    pretty much do repeat do down the hull
    sub2 001.jpg

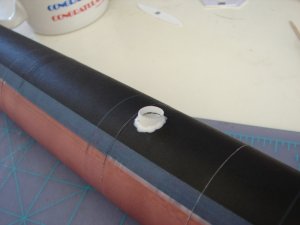

    untill we get about mid way then we need to put in the missile tube. the tube is sandwiched between 2 formers.
    sub2 002.jpg
    sub2 003.jpg

    then its back to moving on down the line.
    sub2 004.jpg
  4. papaace

    papaace New Member

    looking real good Nothing. let me know when it comes available!
  5. Nothing

    Nothing Longtime Member

    thanks papaace.

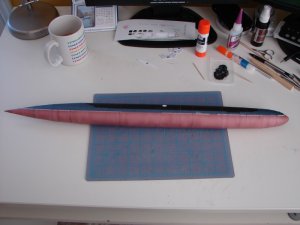

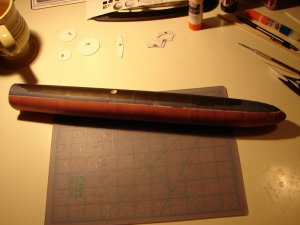

    hull complete
    sub3 001.jpg

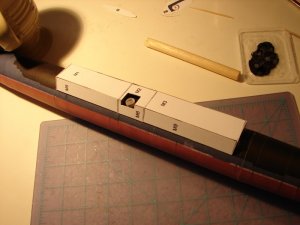

    theres a little riser that now needs to be placed at this point over the missile tube.glue needs to be on the outside. doesnt matter what this area looks like as it will be covered later.
    sub3 002.jpg
  6. JT Fox

    JT Fox Member

    A good design Nothing.

    It's good to see it coming together.

    Cheers JTF
  7. Nothing

    Nothing Longtime Member

    thanks JT:)

    a note-
    i recently had to set up my printer in another room so i use my laptop to print now. i use foxit on the pc but have adobe on the laptop. i had to make some corrections and reprint a page and the scale was off. adobe for some reason defaults to shrink large pages to fit. so make sure to print with no scale changes selected. so my model will actually be 3% off of 1/200. doesnt sound like a lot but it shrinks the overall model by 1/2 inch.
  8. ekuth

    ekuth Active Member

    Okay, for the watership ignorant among us... this is a submarine, yes?

    Either way, it's looking nice. Segmented hulls are a PITA for me.
  9. Nothing

    Nothing Longtime Member

    yes this is what is referred to as a "boomer" - a ballistic missile submarine. can you explain what PITA is?
  10. Elliott

    Elliott Senior Member

    Stands for Pain In The Keester :mrgreen:

    She's looking good!! Wish I could do butt joints in a consistent manner. I know, just like getting to Carnegie Hall - practice, practice practice. :cry:
  11. Nothing

    Nothing Longtime Member

    ahh pita. i understand

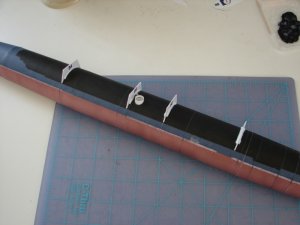

    i started putting on the upper hull formers. and i realized what i had in mind wasnt going to work.
    sub4 001.jpg

    so i whipped up some more formers...
    sub4 002.jpg
  12. barry

    barry Active Member

    Looking good as usual

  13. papastumpy

    papastumpy Member

    Looks good so far. I like how you keep thinking ahead to over come obstacles. Look forward to more, I am not really a Sub man, but your's does get interest.:wave:Rick
  14. Nothing

    Nothing Longtime Member

    next we need to paint the bottom edge of the box black
    sub5 001.jpg

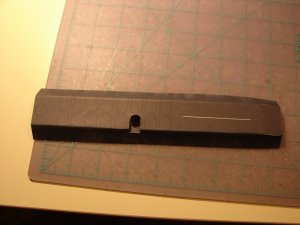

    bend the sides of the missile deck, and put in the missile well.
    sub5 002.jpg

    put together the fore section of the missile deck. tabs are on the parts but again i made internal tabs. i use a white glue as it is strong but flexible as i will need to shape it later.
    sub5 003.jpg
  15. Nothing

    Nothing Longtime Member

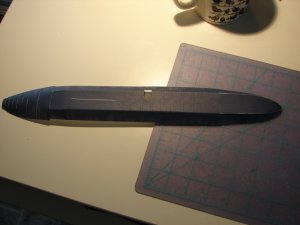

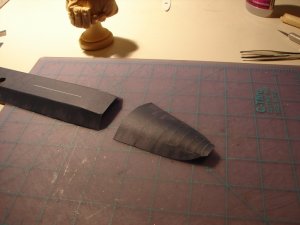

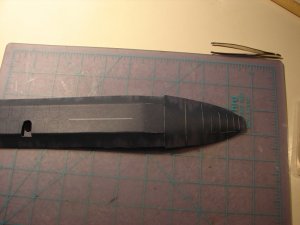

    put on the fore part of the upper hull.making sure it is centered.
    sub6 001.jpg

    then the aft section...
    sub6 002.jpg

    lay the section across the top aligning launch tube.and glue. i would advise to sand the top of the support box flat.
    sub6 004.jpg

    then work our way around gluing the sides.
    sub6 003.jpg
  16. Elliott

    Elliott Senior Member

    You make it look so easy! And good!

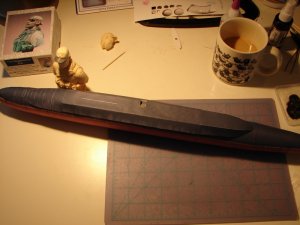

    OK, I've gotta know. Who's the unpainted character supervising the work? I can't make it out clearly enough on the box to identify it.
  17. Nothing

    Nothing Longtime Member

    lol thanks. this is not a complicated design. been tryin to get away from that.

    the figure (which is propping the sub up so i can take a picture) is a special forces triple nickel in afghanistan. its put out by The Regimental S-4. its another one of my hobbies:)
  18. Nothing

    Nothing Longtime Member

    sub7 001.jpg

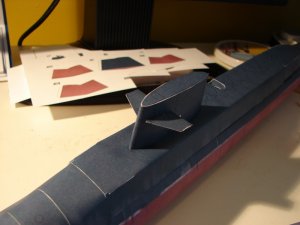

    dive planes
    sub7 002.jpg

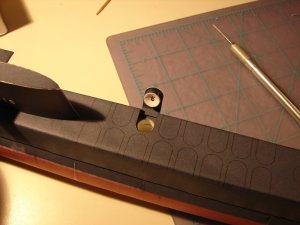

    missile door
    sub7 003.jpg

    tail planes
    sub7 004.jpg

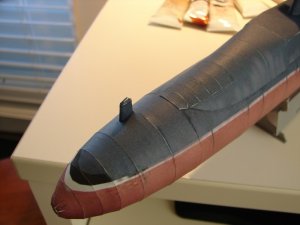

    forward sensor
    sub7 005.jpg

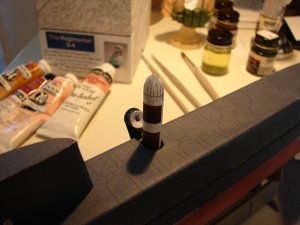

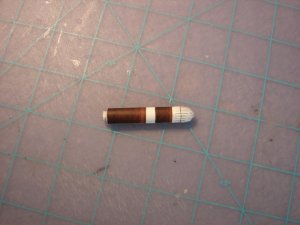

    poseidon missile
    sub7 006.jpg
  19. Nothing

    Nothing Longtime Member

  20. Elliott

    Elliott Senior Member

    Nice work!

    When will she be ready do you think?
