Update on my "N" track modules

Discussion in 'Getting Started' started by Bill Pontin, Nov 12, 2006.

  1. Bill Pontin

    Bill Pontin Member

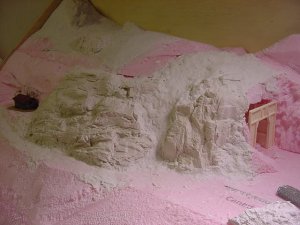

    Love rainy days, get to work on my modules. Made some castings using the molds I made from the rock I borrowed. Started added the rock outcroppings to the left module, this one will be heavily forested and the right one will be an example of early day clear cut. (Still casting my roots and stumps) I work the casting into the foam with a stuff called "sculptamold". Great stuff that can be found at most craft stores. I mix the stuff up to the consistancy of cottage cheeze and mortor it on the back of my casting that I've naturally dampened first. The sculpy that oozes out can be easily formed to add more detail to the casting.

    Attached Files:

  2. Bill Pontin

    Bill Pontin Member

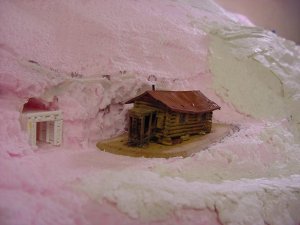

    The old miners cabin, that I scratchbuilt, will go here

    Attached Files:

  3. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

    Looking good Bill.
    Hope to see it finished in Springfield this....Ooops....... next year.
  4. steamhead

    steamhead Active Member

    I like the look of those castings.:thumb: Are the molds you used from "real" rocks? Keep those pictures coming...!!!
  5. Herc Driver

    Herc Driver Active Member

    That's really nicely done. That cabin looks great.
  6. MasonJar

    MasonJar It's not rocket surgery


    Looks great. Love that little mine entrance by the cabin! Is it a casting (resin? plaster?)?

  7. sumpter250

    sumpter250 multiscale modelbuilder

    Looks good, Bill! :thumb: :thumb: If it's Springfield, Mass., there's a chance I might see you there. Most of the vendors at Trainfest had all good to say about that show. We may skip the "National" in Detroit, and do the Springfield. Discussion is ongoing.
  8. Bill Pontin

    Bill Pontin Member

    Hi Andrew, the mine entrance is made from styrene strips. Going to name the mine "NOTURES - MINE".

    Hi Pete, I will be at Springfield for the entire weekend but I do not think I will be bringing any modules with me this year. These two are months away from completion and I will never have them done in time.

    Did a little more to the left module today, between chores and watching Granddaughter, she had a half day of school. Shucks, thought when I retired I would have all the time I needed, I'm not complaining mind you.

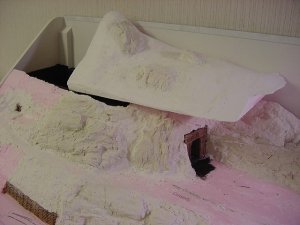

    The top of the tunnel has to be removable to hookup the mountain division tracks during setup and also to rescue derailments.

    Attached Files:

  9. Bill Pontin

    Bill Pontin Member

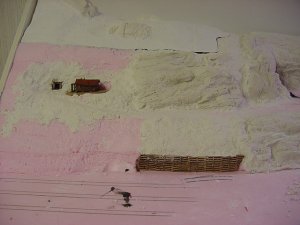

    The top just sets in and I'm hoping with all the scenery the seam will not be too noticable

    Attached Files:

  10. Bill Pontin

    Bill Pontin Member

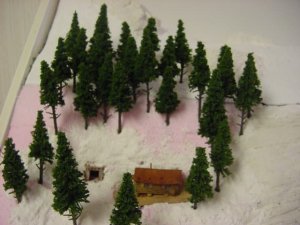

    Been modifying and making up pine trees from the Heyki bottlebrush cheepoo's and putting them onto the Woodland Scenics pine armatures. One hundred down, two hundred more to go!

    Attached Files:

  11. Bill Pontin

    Bill Pontin Member

    Got to love rainy days and Mondays. Lots of time to work on my modules. I first make cutouts of the areas I have available to place my structures and scenery. I think on this dead end spur I will put my base camp for the lumber company.
  12. Bill Pontin

    Bill Pontin Member

    What happened to the pictures? Keep getting an upload error, what the hey is going on?
  13. Bill Pontin

    Bill Pontin Member

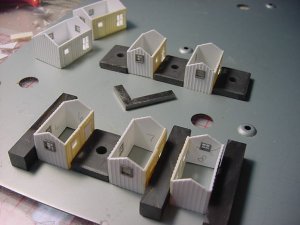

    Well lets try the next part of my posting. Here are the bunk houses and store structures drying on my fixture board.

    Attached Files:

  14. Bill Pontin

    Bill Pontin Member

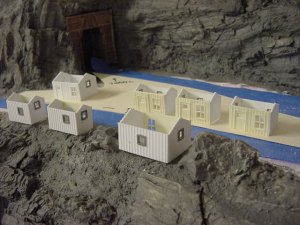

    Placed them on the module to get some idea of how many more I will need. Lots if other stuff to build, chow hall, privies, tool sheds, wash shed and my list goes on an on.

    Attached Files:

  15. berraf

    berraf Member

    I´m impressed of your work!
    Those cabins looks great and what a good idea to make more than one at the time.
    Henry Ford would have liked this kind of work ;)
  16. kf4jqd

    kf4jqd Active Member

    I love it Bill! I had those cabins in HO scale. My question is. Who makes thos pine tress? I will need some for my N scale layout.

  17. Bill Pontin

    Bill Pontin Member

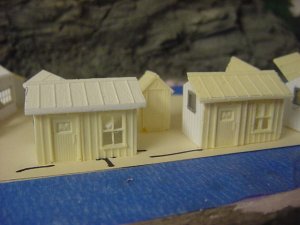

    Thanks Berra and Andy for the kind comments. Andy the cabins are scratch built using modified casting I made from one section of a SYLVAN cabin kit and the rest is .04" Board and Batten shet styrene. The .075" spacing of the styrene matched the cabin front casting from the SYLVAN kit almost perfectly. I used TICHY work car windows in one cabin side and back. I forgot where the original came from that I used to made the mold to cast the roof parts.

    The pine trees are HEKI, the bottle brush box of 100 trees for $15.00. I mounted them to WOODLAND scenics pine tree armatures. I then dunked the entire tree into matt medium and sprinkled on several different dark green shades of WOODLAND SCENICS fine ground foam. I thought I posted a "How To" on that - can't seem to find it, maybe I didn't.

    Here is a picture of the chow hall under construction. Think I will add some details on the interior and leave the front door wide open. Ignore the half roof sections sticking out of the cabins, have to paint the interiors black before I glue them on.

    Attached Files:

  18. berraf

    berraf Member

    That´s my man :wave:
    Bill, this layout will be awesome :)
    Can´t wait to see your progress...
  19. nhinn

    nhinn New Member


    Neat little cabins!

    Jim D
  20. NYNH&H

    NYNH&H Member

    Awesome! When is it going to be in a layout?
