installing decoders with double sided tape

Discussion in 'DCC & Electronics' started by TCH, Nov 3, 2007.

  1. TCH

    TCH Member

    after installing a decoder
    is it best to leave it loose or should it be fixed with tape or
    something similar ?

    I have done both and the only ones to give me trouble where held
    on with double sided tape.

    has anyone had problems using this tape?

    the decoders have been TCS1`s and when the last one smoked
    it looked as if the tape had disintegrated somewhat.

    when I replace it the new one will be taped using duct tape or similar.
  2. woodone

    woodone Member

    The tape might be causing and over heating problem if the tape covers the components on the board. Some of the decoders don't like to have the devises taped. Hold the board in a place where there are no devises, just the printed traces or pads.
    Just a thought.

    Just use Kapton tape only!
  3. UP SD40-2

    UP SD40-2 Senior Member

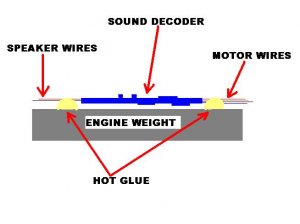

    TCH, i ONLY use sound decoders, but i hope this might be of some help to you. 90% of the time when installing the sound decoder I'll have had to shave some of the engine weight off to get the decoder to fit nicely into the engine. instead of attaching the decoder its self to the engine weight, i take a drop of hot glue and place it where the wires are coming out of the sound decoder. hot glue dries real fast and don't damage the wires. buy using the hot glue, you can glue the wires high enough at both ends, leaving the decoder "suspended" in air, letting heat easily escape from it:winki: . (see pic below) in the event that the decoder goes awry sometime down the road, the hot glue can EASILY be pulled off the engine weight, and a new decoder can be installed:thumb: . i hope this may have been of some help:smilie: .
    :deano: -Deano

    Attached Files:

  4. Nazgul

    Nazgul Active Member

    Great tip Deano!
  5. UP SD40-2

    UP SD40-2 Senior Member

    THANKS STEVE!:mrgreen:
    the sad truth is, i didn't come up with this till a few months ago:oops: , so quite a few of MY engines are not set up like this:eeki: , only the more recent ones are:winki: .
    :deano: -Deano
  6. cnw1961

    cnw1961 Member

    Deano, really a very good idea :thumb: – would not have thought of hot glue to fix my decoders :cry:.
  7. trainnut65

    trainnut65 Member

    This is a good idea from what i can see. Mite have to try it out on some of my older units that don't have the plug in on them.
  8. UP SD40-2

    UP SD40-2 Senior Member

    THANK YOU KURT & TRAINNUT65!:mrgreen:

    OK, heres one for those of you that DO NOT use sound decoders:winki: .

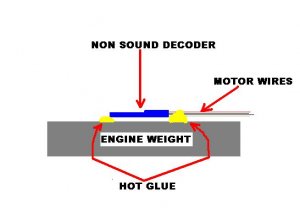

    you would basically install the decoder just as i wrote in the above post, the difference would be on the end of the decoder that DOES NOT have wires coming out of it, place a dot of hot glue down, WAIT FOR IT TO DRY, this will only take a min or two, then set the end of the decoder without the wires down on the pad you just made of hot glue, now the decoder is still resting "suspended" in air letting the heat escape from it:thumb: . hope this is of some help:smilie: .

    Duct tape may be Red Green's best friend:winki: , but hot glue is mine:toug::119: .
    :deano: -Deano

    Attached Files:

  9. TCH

    TCH Member

    thanks to all for your replies.

    upon reflection I think the decoder has probably not had enough room
    to cool, so I will certainly try Deano`s hot glue method.

    will also go over the wiring very carefully to double check that everything is OK, as this has only happened with the same loco.

    thanks again
  10. b28_82

    b28_82 Member

    I would say that the only decoder that you could use double sided tape on is the ones that are already wrapped with heatshrink.
  11. TCH

    TCH Member

    the decoders where wrapped in a plastic type film.

    don`t know if it would act as a heatsink.
  12. w8jy

    w8jy Member

    Deano, thanks for the hot glue tip. It certainly is timely, as I placed an order yesterday for two decoders that I will be installing. Up to this time, I have purchased locos either complete with modem, or have had the hobby shop install them before shipping.
    I was wondering about how to anchor them, so thanks again for the tip!
  13. Robert Miner II

    Robert Miner II New Member

    Hey guys, yep coming in real late on this thread but saw it and just recently came up with a solution to this problem myself. Thanks to raiding my wife scapbooking desk this is what I came up with. She uses a product called "ZOTS" they are like glue dots or that stiky snot stuff that you see on some of your mail once in a while but hold firmer. In the past I've used the miniture "ZOTS" to hold my figures on my modules since you can remove them and they are not too permanante. Well in installing quite a few decoders latley and getting tired of the wires and decoders flopping around I raided her desk once again and highjacked her "large ZOTS". These thing swork pretty dang good! They hold very firm but are flexible enough that you can remove them with a little finnes if needed. I suggest giving them a try. They come in a vairety of sizes and if you have a HOBBY LOBBY, MICHAELS, or other scapbooking store you can find them there. Unless of course you wife scapbooks and uses these. She may not notice for a coulpe weeks if they come up missing! They come in a small box and are on a wax paperlike roll that you just peel them off of. Well good luck and if any of ya'll give them a try please let me know your thoughts.
  14. TCH

    TCH Member

    thanks Robert Miner II

    do these raise the decoder so there is a gap to allow for cooling
    or are they flat?

    thanks for your input

  15. Robert Miner II

    Robert Miner II New Member

    They do leave a bit of a gap between the decoder and the board enough to satify my cooling concerns. You can also flatten them out or mold them a bit higher to allow for more gap if you wish. Therm O Web Consumer Products Craft Zots
  16. woodone

    woodone Member

    Hay, that is a great tip. :thumb:
    Will have to give them a try.
    Thanks for the idea! :idea:
