HOn3 drive units

Discussion in 'Narrow Gauge Model Railroading' started by nachoman, Feb 20, 2005.

  1. nachoman

    nachoman Guest

    I am attempting to scratchbuild a Magma Arizona 2-4-2 in HOn3, but need some help with making the mechanized parts.

    First off, I am in need of some drivers, 34" diameter. What driver diameters are available in HOn3, and by whom? I was thinking about going a bit large with MDC 2-8-0 drivers, unless I could find something else. My original plan was to build a frame and attatch a NWSL geabox and a small motor - but now I am considering the possibility of adapting an N-scale mechanism, and widening the gauge. Is it possible to re-gauge the bachmann N scale 0-4-0 by substituting longer axles? It's a pretty tiny loco, and I was also considering making it HOn30, as I need something to run on an 30" branch anyway.

  2. Catt

    Catt Guest

    My thoughts are just go ahead and build it in HOn30.It would save a lot of work and just maybe some disapointment along the way.

    Just be sure to keep us posted on your project and take lots of pictures. :D

    And while I'm thinking ,Welcome to the Gauge.
  3. Matthyro

    Matthyro Will always be re-membered

    Welcome to the Gauge Kevin. Hope to see photos of your endevour.
  4. nachoman

    nachoman Guest


    i just pulled this to the top of my project pile. I haven't done much work on this in well over a year. My goal was to build a working mechanism before I went much further on the superstructure. Anyway, here is the prototype:



    Attached Files:

  5. sumpter250

    sumpter250 multiscale modelbuilder

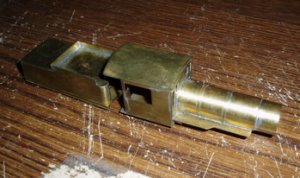

    I like the prototype! the link above is to a photo I posted of a standard gauge 2-4-2 that I'm working on. There was an HOn3 2-4-2t kit once, I don't remember who made it, I'll have to find it and see if there's a manufacturers name on it.
  6. sumpter250

    sumpter250 multiscale modelbuilder

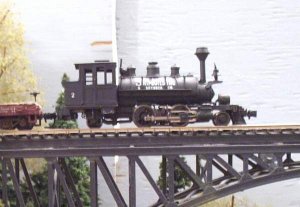

    I acquired this fully assembled, and cannot find a manufacturer's name on it. Maybe someone will recognize it, or you might be able to use the picture to find one. Drivers are 36" dia, and overall wheelbase, pilot to trailing, is 18'.
    The frame is diecast, and the boiler/cab, plastic.

    Attached Files:

  7. nachoman

    nachoman Guest

    from a quick google search, this looks like an Erie Limited model imported by sunset back in the mid 80's. Quite interesting and would work perfectly if it were cheaper and still available. This is a long-term project and I have plenty of time to search ebay...

  8. jetrock

    jetrock Member

    About the Bachmann N scale 0-4-0: It is possible to scoot the drivers out a little bit to enable it to run on HOn3 track--the difference is only about 1mm or so, so you don't actually have to replace the axles. I did it with my Bachmann 0-4-0 with no ill effects.
