Buck Rogers Land Rover

Discussion in 'Science Fiction & Fantasy' started by Revell-Fan, Feb 25, 2015.

  1. Revell-Fan

    Revell-Fan Co-Administrator Administrator

    Hi fans! :)

    Since Rhaven and I are revisiting the Landram (which you might know started my paper model designing "career" ;) ) I have found a project which I began a few years back: The Land Rover from Buck Rogers.

    I collected many screenshots of the show and pics of the Mego toy but somehow the project got lost in the queue. Today I gave it a shot and was able to flesh out the main shape in a couple of hours. Practically it is the Landram in disguise. ;) I will use the same undercarriage and track system for it so you will see some familiar parts.


    There were three versions of the Rover: The version from the pilot movie which made it into a toy, a revamped and recoloured version which was featured in the episode "Escape from Wedded Bliss" and an EDD version in the episode "Flight of the War Witch". I'm starting with the simplest version from "War Witch" and will "work my way up", so-to-speak. Next will be the recoloured Draconian Rover featuring the turret and last but not least the toy version with the visible track system.

    Seen through the paper modeler's eyes it was extremely fortunate that Universal Hartland had limited time and resources to make Buck Rogers props because that forced them to keep things simple. Hence it should not be very difficult to replicate the Rover in paper.

    And here is the first WIP pic. Enjoy and stay tuned! :)

    Last edited: Feb 25, 2015
  2. blake7

    blake7 Member

    That is great! Thank you for adding a vehicle to the Buck Rogers paper models. Waiting to see how it turns out.
  3. Revell-Fan

    Revell-Fan Co-Administrator Administrator

    You are welcome! :)

    And please don't think the other two "BSG machines" have been abandoned. I'm counting on finishing them this year. ;)

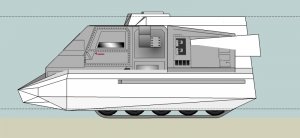

    The CG model is almost finished. I have put it on the Landram mesh to see how it compares.


    If you look closely to the window frame you will see that both models are aligned.

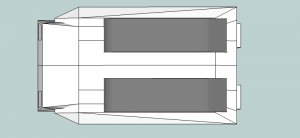

    A view from below. Not too bad, it seems. Please take in mind that they used different tracks on the Rover; they were slimmer than the ones from the Landram. I have adapted them accordingly and it looks good to me.

    The bottom view made me think of the possibility to skip the whole undercarriage and add "fake" tracks because everything is hidden by the armour plating. Building complete wheels does not seem to be much efficient here because you won't see any of them on the finished model. That means less parts and faster fun. ;)


    I think I can keep it this way. :)
    Last edited: Feb 25, 2015
    cylongirl, bgt01 and Rhaven Blaack like this.
  4. ASC Mclaren

    ASC Mclaren Member

    Ohhhhhhhhhhh! Very cool! I do have most of one of the mego tanks, if that helps.
  5. GyverX

    GyverX Member

    Is that SketchUp? If so, What version and is it the free one? Also, Do you use any special plugins?

    Thanks For the answers the the cup of awesome-ness
  6. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator

    To quote the immortal words of Twiki: BeedeeBeedeeBeedeeBeedee. You'r the BEST, BUCK!!!

    This is going to be a fun build! I am looking forward to it!!!
  7. Revell-Fan

    Revell-Fan Co-Administrator Administrator

    You are welcome! :)

    Yes, it is SketchUp. I use version 8 for sculpting and version 6 for exporting the mesh into *.kmz(4) format which can be understood by Pepakura. Both versions are free but no longer available on the Trimble main page (you will have to look somewhere else for them). I have several backups of the programs just to be safe because I don't know how to operate other 3D programs. I will check out the latest free version (SU2015) soon.

    This model is very easy to build (OK, the moving turret may be a bit trickier, but not much ;) ) and the textures will be plain and simple, so the most logical way is to turn it into a vector graphic. To do so I have installed the SketchUp unfold plugin. The mesh is unfolded manually within SketchUp, exported to *.svg and loaded in CorelDRAW for further processing (colour, decals, tabs, layout). In Corel I start with a letter-size canvas to ensure that everyone in the world may print the pattern correctly (I can't thank @sjsquirrel enough for that idea :) ). When everything's ready I change the canvas to A4 format and export the project as *.pdf. You may look up some of my previous build and design threads to see more of my work flow, especially the "Launch when ready!" and Andrew Probert concept Vipers threads. :)

    Thank you! :) Wasn't it
    BeedeeBeedeeBeedeeBeedee. You're my kinda guy, BUCK!!!
    ? ;)

    GREAT! I may PM you on occasion because I have noticed that the Mego version differs from the real one in certain respects. CU! ;)
    cylongirl and ASC Mclaren like this.
  8. Revell-Fan

    Revell-Fan Co-Administrator Administrator

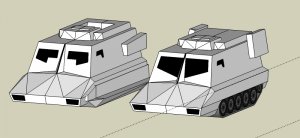

    Rover versions #1 and #2 side by side.


    Next will be the turrets.
  9. ASC Mclaren

    ASC Mclaren Member

    Let me know. The mego looks like it was designed to be motorized, and it is "toy" accurate.
  10. Revell-Fan

    Revell-Fan Co-Administrator Administrator

    The only area which is complete guesswork is the top. There are absolutely NO shots of the original vehicle showing it. And the screenshots from the pilot are so dark that you can't see anything, so I can't tell if there is a place for a gunner or not on the first version. :( Since the turret fired without a gunner I suppose that the roof was flat as seen on the toy. Well, once the plans are released you are free to modify the model according to your wishes and add a recess for the gunner. ;)
    bgt01 and Rhaven Blaack like this.
  11. Revell-Fan

    Revell-Fan Co-Administrator Administrator

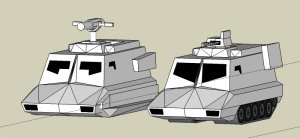

    The basic shapes are set. It seems that the pilot version featured the Landram turret. The proportions of the Draconian gun are not final yet.

  12. ASC Mclaren

    ASC Mclaren Member

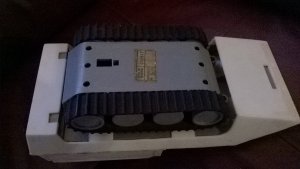

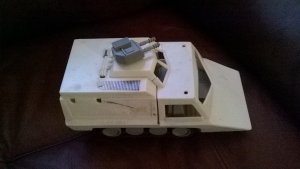

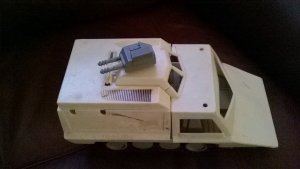

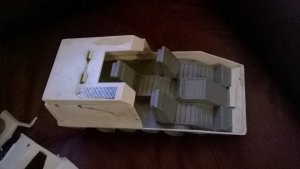

    Here are some pics of the mego toy: BR TANK.jpg BR TANK 2.jpg BR TANK 3.jpg BR TANK 4.jpg
    Revell-Fan and Rhaven Blaack like this.
  13. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator

    These look GREAT so far!!!
    I am GREATLY looking forward to seeing how these will turn out.
    Last edited: Oct 6, 2016
  14. Revell-Fan

    Revell-Fan Co-Administrator Administrator

    Thank you, Big J! :)

    The pics will be helpful when I start texturing. As for the motorization: It sure looks like that; I read that it featured a roving sound. ;)

    In for a test build, RB? ;)
    Rhaven Blaack likes this.
  15. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator

    thumbsupOF COURSE!!!thumbsup
  16. mcusanelli

    mcusanelli Member

    You guys are really a blast! This brings back so many memories of that show, and how fun it was. Thanks again for bring these models to life for us:)
    Revell-Fan likes this.
  17. Revell-Fan

    Revell-Fan Co-Administrator Administrator

    You are welcome! :)
  18. Revell-Fan

    Revell-Fan Co-Administrator Administrator

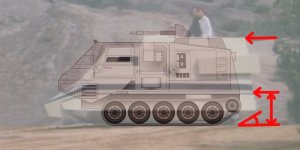

    The turret was resized. A few corrections have to be made to compensate the perspective distortion but I like the overall appearance.


    Beware, Buck! :)
  19. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator

    @Revell-Fan There is a very serious drawback to you making the Draconian Land Rover. I now have to make a Draconian Soldier Figurine. o_O
    I will need your help with the helmet (of course).
    cylongirl and ASC Mclaren like this.
  20. Revell-Fan

    Revell-Fan Co-Administrator Administrator

    LOL! It's OK, buddy! ;)

    BTW, this is the new decal for the EDD counterpart:

    cylongirl, bgt01, ASC Mclaren and 2 others like this.
