2 Direction Reversing Loop

Discussion in 'DCC & Electronics' started by DOUBLEJK, Jan 10, 2007.


    DOUBLEJK Member

    Howdy all...:)
    I have a question on reversing loops as shown below...
    The two curves are what I think need gapped at the first track beyond the switch for a total of 4 gaps????


    I am using DCC in the form of a Lenz Set100.
    How many reversing modules do I need?
  2. 60103

    60103 Pooh Bah

    John: I don't see any reversing loops. There is no way for a train to use that track to turn itself around.
    Unless you are using all-rail frogs (electrofrog) you don't even need any rail gaps.
    Is this the whole layout?
  3. EngineerKyle

    EngineerKyle Member

    I'm with David... even if your are showing a small part of the layout, IC no reversing loop here.

    DOUBLEJK Member

    Yes...It's just a small section connecting on all 4 straights to other parts of the layout...
    I was looking for the smallest reversing section to go both ways and I can enter this from any direction. I only have loco's powered no cars with power so thought a small one might work.sign1
  5. EngineerKyle

    EngineerKyle Member


    This is not a reversing loop. You might mean it can be used to take and isolate a train from one part of the layout to the other. However, a train running forward and clockwize cannot be made to forward and counterclockwise with this track.
  6. MasonJar

    MasonJar It's not rocket surgery

    Can you show us the rest of the layout? If 2 or more of the 4 legs that lead to other parts of the layout converge at some point, there may be a reversing loop present... ;) Take a look at the whole plan and see if there is any trackwork that forms a sort of teardrop shape.

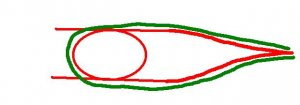

    The (rather crude) diagram shows one way that your trackwork might be part of a reversing loop.


    Attached Files:

  7. EngineerKyle

    EngineerKyle Member

    Good job, Andrew,

    I did not see it like that....

    If that is how this guys layout looks, he should have shown that part in his diagram.

    DOUBLEJK Member

    I never asked if this was a reverse section I know it is.
    This is just a small section of the overall layout that will have the 2 curves being reversing sections to turn trains around such that they re-enter the system going the oppisite way they were going....
    My question is....
    I believe that the curves will need gapped at both ends before the switch
    Do I need 1 or 2 reversing modules. I believe they are KV100 in the Lenz offerings?[​IMG]

    This isn't the layout but gives a better view for those needing to see more to believe trains will reverse in the small section shown.
  9. NYNH&H

    NYNH&H Member

    It doesn't look like there could be a train in each at any one time, and if this is the case, then you only need one. If there is going to be a train in each, then there needs to be two. If you can, make the reversing section longer than the longest train, as this will help to make sure it works reliably. You could also make the whole inside part a giant reversing section, as long as two trains won't be passing over different gaps at the same time.

    DOUBLEJK Member

    Thank's NYNH&H
    So if there is a potential to have a train in each reversing section then I need 2 KV100's and if I don't let more than 1 train in a reversing section I can wire both too 1 KV100.
    Hmmmm' cheap....er safe....the way my stuff ussually goes I better spring fer 2 and cut Murphy off at the pass.:wave:
  11. NYNH&H

    NYNH&H Member

    If you want to save money, you can use DPDT switches, although then you have to remeber to actually throw them. The Tony's reversers are the best, they are solid state.
