Union Pacific BIG BOY 4-8-8-4 1/25 Scale (Engine)

Discussion in 'Gallery & Designs' started by kooklik, Sep 2, 2009.

  1. techikun

    techikun New Member

    Wow...Amazing... Fantastic!
    You are great designer and also great builder!!
    Very nice model.
  2. twinslet

    twinslet New Member

    I just found this project posting and, while I thought the 1/72 U-Boat was cool, your locomotive project is the most fantastic model I think I have ever seen. This ought send the plastic boys reeling. I always loved this train since I was a small boy in the sixties. The Union Pacific 4018 has been the star of the Age of Steam museum here in Dallas since it opened in 1963. This museum is moving to a new site and they plan to put the 4018 on the tracks once again for the 30 mile journey to its new home. That'll be a photographer's dream! We'll have to make sure your model is made available in the gift shop. Great work! Keep 'em coming!
    Tom from Texas.
  3. oklacnw

    oklacnw Guest

    It keeps getting better!
  4. astralwanderer

    astralwanderer New Member

    mind boggling. what attention to detail. kooklik again displays his considerable skill.
  5. kooklik

    kooklik Member

    Hello to all

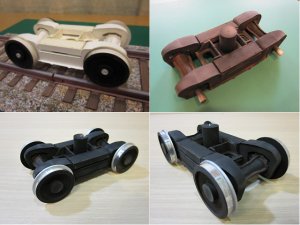

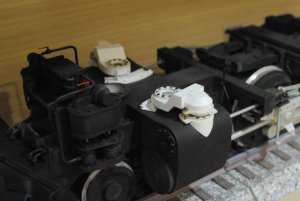

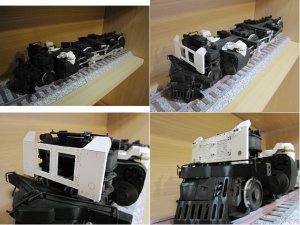

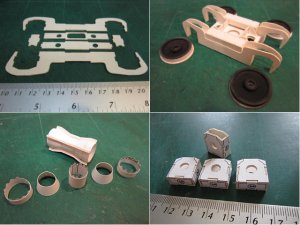

    I'm back again after the situation here and in Bangkok is getting better. The model is going bigger. I added the engine truck and start the pilot frame. First frame was too weak. many parts were changed from thin paper to cardboard. I want to make it looked strong. The draw gear can rotate to inside the pilot when unused.

    Attached Files:

  6. 4x4paper

    4x4paper Member

    I hope everything is good with you in Thailand

    Superb job as always

  7. oklacnw

    oklacnw Guest

    You are one fantastic modeler.
  8. kooklik

    kooklik Member

    Hello to all
    Thanks for warm words to me.

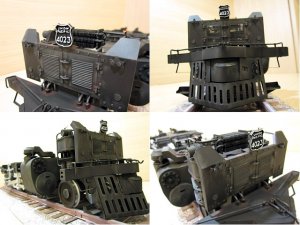

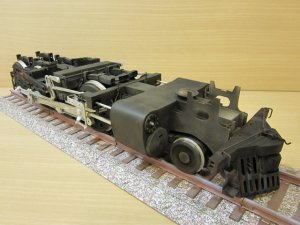

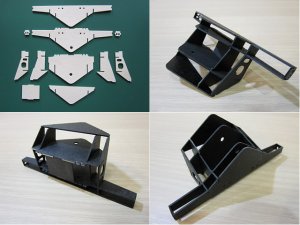

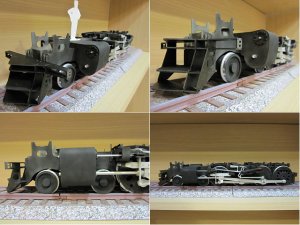

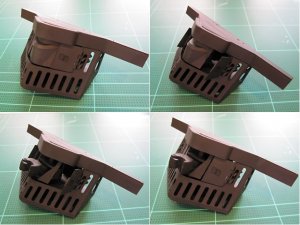

    The pilot has been completed today. I designed the draw gear position be selectable. It can turn into the pilot when unused.

  9. oklacnw

    oklacnw Guest

    I still have hard time believing this is paper! It is beautiful work, Kooklik
  10. kooklik

    kooklik Member

    Thank you for your every post. :)
  11. 4x4paper

    4x4paper Member

    Look better and better
  12. kooklik

    kooklik Member

    Thank you 4x4paper
    The parts are added week by week in recently. The parts assembly is not too much complicated but the volume is big. Parts are compressed in a small space as the real train be. The sequence of assembly is much challenge for me. I found a few design mistakes during the building. Some of them I could not correct for my own test build. Hope it won't happen to Michael's test build.

  13. kooklik

    kooklik Member

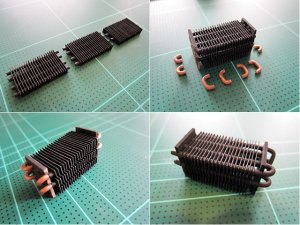

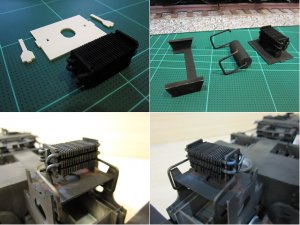

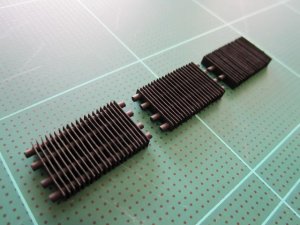

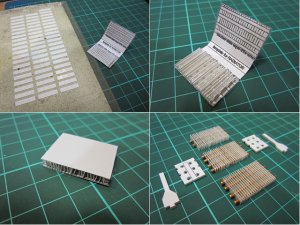

    I have a new update for this week. The radiator and condensate tank for the air compressor pumps. The radiator made by 21 fins for each layers. I made a jig to hold and fix all fins then inserted 2.0 mm wire through the fins. By this jig the fins are not bent.
  14. oklacnw

    oklacnw Guest

  15. kooklik

    kooklik Member

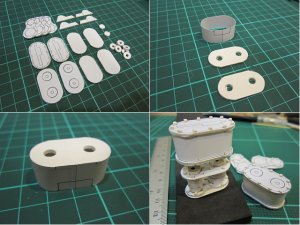

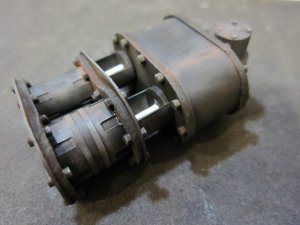

    First compressor pump just finished today. I want to see the first one in black with weathering. So I left another one for the next day.

  16. kooklik

    kooklik Member

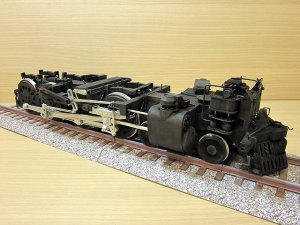

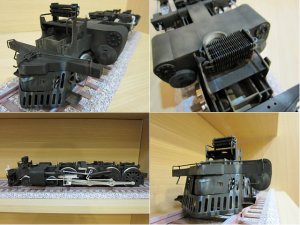

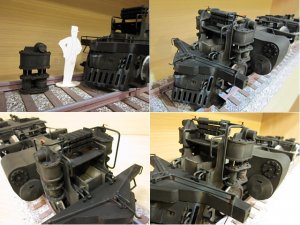

    Installed 2 compressor pumps


  17. aflec

    aflec New Member

  18. kooklik

    kooklik Member

    Hello there

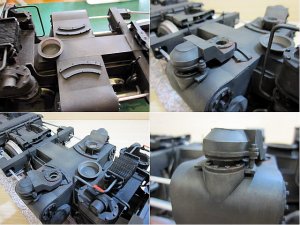

    During 2 weeks I built Slip Joint Elbows which one of moving parts. The joint slips on a curve rail behind when the train runs on a curve.

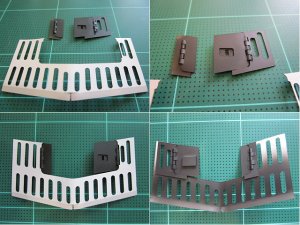

    Today I finished to build the Air Pump Shield. The shield doors' grill is a hard work to do. The grills are very small and easy to be torn during folding. I had to rebuild twice.

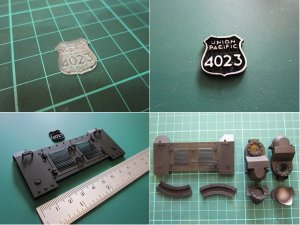

    The Train Number Plate is a too hard for my hand cutting. It would be a good idea to get some helping from a Laser machine. I found a Laser Cut for artwork shop here. They helped me to make the number plate without charge. Thousand thanks to them.
    The painting is a hard job. Now the magnifier is a necessary tool as much as the knife for me. I painted under it.





  19. 4x4paper

    4x4paper Member

    Realy love those last parts
  20. kooklik

    kooklik Member

    Hello 4x4paper
    I have more parts :)

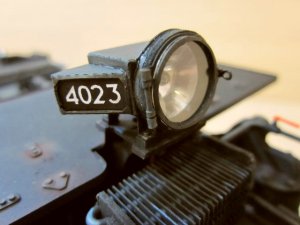

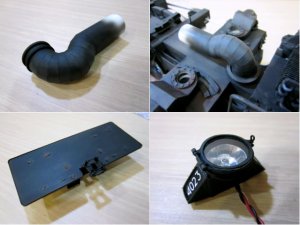

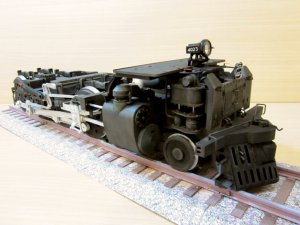

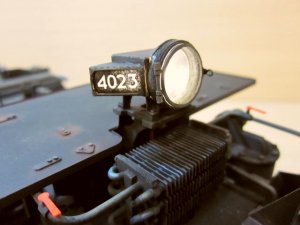

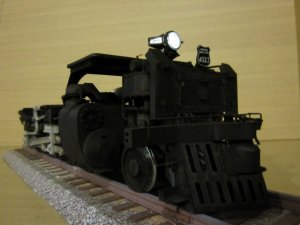

    Several weeks I redesigned and built many parts. This week I have exhaust pipe , front run board and head light to present. I put 3 LEDs to the head light. One for the main light and 2 for number plate lights. The cover glass rim glows up too. I should add black painting to its rim.
