The Lone Wolf Line : A Modular On30 Layout

Discussion in 'Narrow Gauge Model Railroading' started by Lighthorseman, Oct 10, 2004.

  1. Lighthorseman

    Lighthorseman Active Member

    I have already run this thread in AMR, so I appologize to those of you who've already seen this. Nevertheless, here we go.

    For a good number of years now, I've been going to the Edmonton area train show in September, hoping to see some On30 stuff. First, when I'd only heard of the new Bachmann offerings, I just wanted to see a few pieces. Nothing. Okay,so I eventually caved in and bought a couple of pieces of rolling stock...just to have a look. Well, that was the end of that. Now I'm quite converted, and go to the train show in the hopes of seeing a display or layout. Nothing. Year after year of nothing.

    Checking with local hobby shops reveal that I seem to be the only single On30 guy in the entire (500 000 to 750 000 people) Edmonton area. So, I guess that if I want to see On30 at a show, I'll just have to build my own.

    From an old layout, I have a large number of 2 by 4 foot module frames, and these have become the basis of the "Lone Wolf Line", a 15 foot by 7 foot modular On30 layout.

    I have until early September of 2005 to get this thing together. My goal is to have a full running circuit of track, with at least one fully scenicked module. If I can pull this off, I'll be at the show.
  2. interurban

    interurban Active Member

    I love deadlines

    Good on you Steve :thumb:
    That is what we had to do, no Traction models at the shows, so we built one and did it our self`s.
    You will be pleasently surprised at the intrest you will generate :)

    Please keep us posted. :thumb:
  3. Lighthorseman

    Lighthorseman Active Member

    Progress: October 10th, 2004

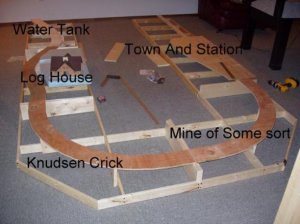

    I have built two of the four corner modules I'll need, and combined with the first four straight modules, Here's what we have so far. Planned towns, buildings, scenic elements, etc. are indicated.

    The trackplan is really simple. Just a single main line bobbing and weaving through some rugged scenery...lots of rocks, trees, fills, cuts and water. Unlike my home layout, I'll be using Peco On30 track for this one...mostly for tracklaying ease and durability.

    As to the corners, they are 36 inches square, and have a curve radius of 30 inches, with 6 inches at each end for joining modules and a (brief) curve transistion. The 30 inch radius should allow me to run any of the up-and-coming K-class locomotives. The town and station area will have a passing track to allow trains to meet. From what I can tell, this passing track could well be up to 6 feet long - more than enough for the short narrow gauge trains I'll be running.

    Attached Files:

  4. Catt

    Catt Guest

    Looking good Steve.Once IronRailZ has the TTRAK layout the way we want it there is a modular 0n30 layout in our future too. :D

    Good luck on your project and please keep the progress posted.
  5. Chessie6459

    Chessie6459 Gauge Oldtimer

    Good Luck steve on your project. :wave: Keep us updated on the progress. :wave:
  6. SAL Comet

    SAL Comet Member

    Kundsen Crick? That name sounds farmiliar.
  7. Lighthorseman

    Lighthorseman Active Member

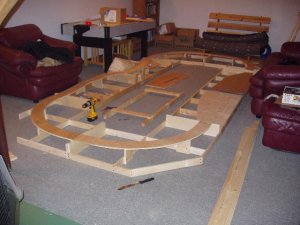

    Well, the 2 last corners are done, and the legs are under way. I've even started putting in the wire mesh scenery support on one of the modules.

    Attached Files:

  8. Tyson Rayles

    Tyson Rayles Active Member

    :D That's also the name of the creek on my micro layout, great minds think alike or what? :wave: :D Looking good Steve! :cool:
  9. philip

    philip Guest

    Looks great Steve! You takin it to any train shows?


  10. Lighthorseman

    Lighthorseman Active Member

    That's the whole idea, Phillip. Year after year, there are never any On30 displays or layouts at the Edmonton show, and I got tired of getting only blank slares when I asked about On30 of anyone. This way, I can hopefully have people come to me. It seems to be up to me to get On30 out there and let folks see else is doing it.
  11. Lighthorseman

    Lighthorseman Active Member

    Well, the mine just beside it is likely to be known as "Tyson's Folly". :thumb:

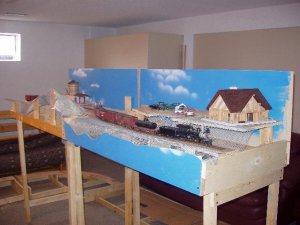

    Well, the legs are coming together, and I have roughly put on the backdrop, as well as starting to work on the front fascia...which will not be blue... :p Here's a shot:

    Attached Files:
