Scratch built flats

Discussion in 'Scratchin' & Bashin'' started by Drew Toner, Nov 7, 2002.

  1. Drew Toner

    Drew Toner Member

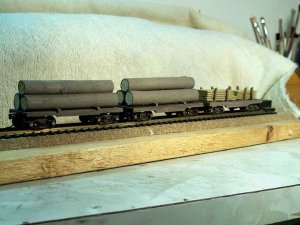

    My first attempt at scratch built rolling stock. The two log cars have the logs pinned to the floor and the cut timbers fit securly between the vertical bulk-heads. The cars were made with all wood, except the styrene timbers and of course the Kadee trucks, wheels and couplers.


    Attached Files:

  2. Drew Toner

    Drew Toner Member

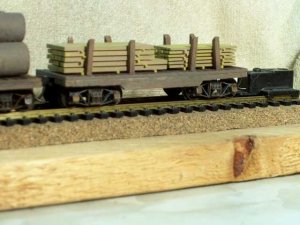

    And and a closer shot of the flat.


    Attached Files:

  3. jon-monon

    jon-monon Active Member

    Sweat rollin' stock! I like the weathering on the wheels and couplers.
  4. Matthyro

    Matthyro Will always be re-membered

    These turned out great Drew. They look better than the commercially made ones and as Jon says, the weathering is superb.
  5. Drew Toner

    Drew Toner Member


    Thanks on the weathering,

    I figured that to get it to look nice, you have to use three or four colors. The first two are washed onto the part, and then the last two are dry brushed. I start with the darker colors and work up to the dust. Takes some time, but they do look better.

  6. moss-lake

    moss-lake Member

    Hey Drew,
    They look great !! Good job on the weathering. ;) :D :D
  7. shamus

    shamus Registered Member

    Nice work Drew, look well on my Badger Creek also :D:D

  8. NYCentral

    NYCentral Member

    Or Mine!!:D :D :D :D Very well done Drew
  9. jon-monon

    jon-monon Active Member

    Re: Weathering

    It's perfect! and I thot it was how ya hold yer mouth while painting!:p
  10. Vic

    Vic Active Member

    Excellent Drew!!:) :) :)
  11. sumpter250

    sumpter250 multiscale modelbuilder

    Nice flats !!, and the weathering is great !
    It reminds me of the daunting task I have before me,,, that of weathering, or more correctly, re-weathering most of my rolling stock.
    I do try not to be a rivet counter, but I do count rivets. There are details that I will strive to include on models that I build, and the attention to detail gets more accute as time goes on. So, please understand that I am NOT criticizing. My intent here is purely educational.

    Wheels: To rust, or not to rust, that is the question. Really, when do wheels get rusty? This depends greatly on the type of bearings used in the trucks.
    Roller bearing trucks do not get regular applications of lubricant. the bearings are sealed, and usually don't leak, so there isn't any lubricant on the wheel faces, and they will show rust through the dirt.
    Friction bearing trucks have the doors lifted, and oil added constantly! The oil leaks easily from the journal boxes, and centrifugal force spreads the oil quite evenly across the face of the wheel. This oil, and all the dust and dirt combine to form a dark sludge on the wheel face.
    The wheels of friction bearing trucks will be rusty; if they are newly mounted in the truck frame, and haven't had much "run time", or, if the car has been sitting idle for an extended period of time (months). Otherwise they will be dark.
    The wheels of roller bearing trucks will be a bright rust color if they are new, and a dirty rust if they've been in service.
    I wish I had learned this about a thousand wheel sets ago, I wouldn't have the major project to do now, that being, to remove the rust from the steam era wheels, and add the rust to the modern wheels.
    Considering the age of your flats, and the hard use they get, I'm sure the wheel sets have been changed several times, and it's been well over a month since they were last done. My opening comments stand, nice flats! and the weathering is very nicely done.
  12. Drew Toner

    Drew Toner Member

    Weathered Wheels

    I'm not really happy about the logs, so I might take them off, and do them a bit darker.

    Jon, it 'is' in the way you hold your mouth, and me having an under bite, find my self getting a sore jaw while detail painting!!!

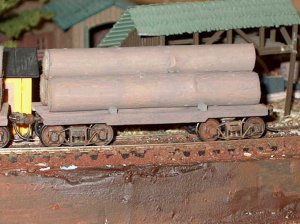

    Pete, your absolutly right about the wheel condition, and wether they shoud be rusty or not. My flats have just been remanufactered, so the oil hasn't had a chance to get out onto the wheel yet!!I can relate to your comment about not being a rivet counter, but like to count rivets. I have a tendancy to do that to! For example, what did I paint the journal boxes rusty for, in this shot. See, lousy rivets!

    Now I have to wait for more material so I can make more flats and loads!


    Attached Files:

  13. davidstrains

    davidstrains Active Member

    Those flats look to be just the right size for the "Gauge Industries Box". (see the "Box" thread.) An the lumber on that car looks like it might be the remanents of the one that Jon's truck ran into.:D :D :)
  14. Tyson Rayles

    Tyson Rayles Active Member

    Nice work Drew! :cool:
  15. t. alexander

    t. alexander Member

    Nice work Drew.

    Pete is sure right about the sludge. The wheels on my caboose Which are replacements and date from the 40's are pretty darn sludged up.

  16. sumpter250

    sumpter250 multiscale modelbuilder

    Because you didn't expect to be on the "board" of directors, with a track gauge test unit in tow, that's why
  17. Drew1125

    Drew1125 Active Member

    That is some excellent looking rolling stock, my friend!
    Very nice work!
    Thanks so much for the tutorial on wheel weathering...I learn so much every time I come to The Gauge!:cool:
  18. t. alexander

    t. alexander Member

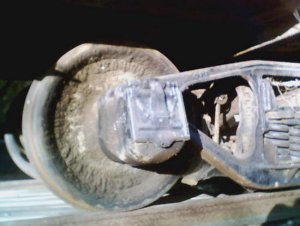

    Here's a shot of one of my wheel set's showing that sludge build up Sumpter was talking about.

    Attached Files:

  19. Drew Toner

    Drew Toner Member

    Wheel sludge

    t. alexander
    Now if I didn't know better, I'd say it is real. But, I have a feeling that in fact it is a model. But there is too many parts visable to be a model.

    Are they real wheels in the wheel sludge photo?

  20. Drew Toner

    Drew Toner Member

    Flat Loads

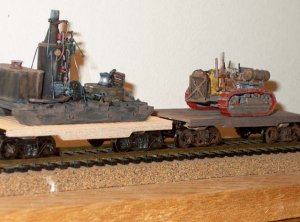

    I don't know about the Gauge Industries Box, but I think Donkeys and Dozers look pretty good!!


    Attached Files:
