Resin casting: not only for modeling purposes...

Discussion in 'Resin' started by Tonino, Mar 21, 2016.

  1. Tonino

    Tonino Member

    I wasn't sure about where to post this thread. It isn't actually a modeling thread.
    This is a story that demonstrates how our modeling skills, so much deprecated by our wives, sometimes are useful for purposes they couldn't never imagine!!!

    First the story:

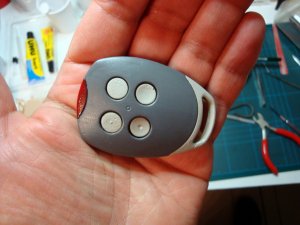

    some weeks ago my wife returned home with only half of her garage door remote controller. The upper half of its plastic shell was lost somewhere in the outer world. No chance to find it again.
    We bought another remote but the old one was perfectly functional, it only lacked part of the shell and the buttons. I didn't want to trash it. So the idea was to duplicate the existing parts from my own remote to replicate the lost one...

    Resin casting is a useful technique - for us modelers - to replicate many identical parts from one master.
    @Bill Nelson gave us a very good example in this thread.
    But you can also use it to double any complex shape if you figure out a way to extract your master from the silicon cast...

    The only thing you have to avoid are passing holes because they can block your master inside the silicon. Putting a piece of adesive tape over any hole will result at the end in a thin resin foil that you can easily cut out from your casted piece.

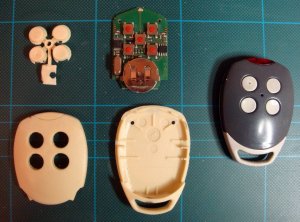

    These are my original remote pieces.

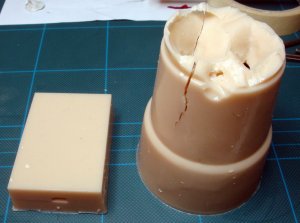

    And there are the silicon casts obtained from them

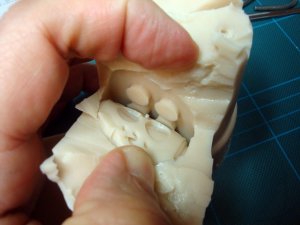

    They contains an exact template of the shells...

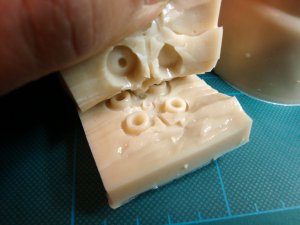

    ...and of the buttons.
    zathros and Ron Caudillo like this.
  2. Tonino

    Tonino Member

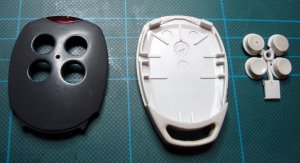

    After some tries...(the difficult part is to avoid air bubbles when you cast the liquid resin) there are the best pieces I was able to obtain

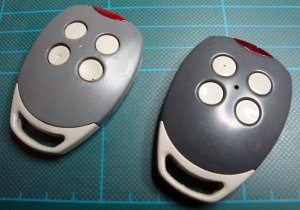

    And, after some painting, here are my new remote (on the left), next to his original counterpart (on the right)...

    And it's not only a 1:1 reproduction: it's fully functional!

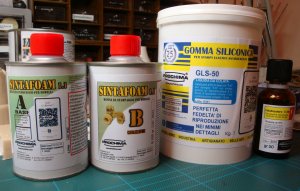

    Here are the silicon and resin products I used. They are produced by Prochima, an italian company, but, I think, they are comparable to any similar product you can find near you...
  3. Ron Caudillo

    Ron Caudillo Creative Advisory Consultant Moderator

    GREAT idea! Good reproduction too!

    My wife supports my designing and modelling habit because I make her things for women's retreats, conferences, etc that our church organizes. I have also designed and built several items used at a wedding receptions (including my daughter).

    Bottom line, include projects that they need/are interested in and NEVER neglect them (or friends and family). Moderation is the key.

    Best Regards,
    zathros likes this.
  4. zathros

    zathros SENIOR Administrator

    That looks professional grade to me. Excellent job! I had an antique generator, and somehow, I had cracked the housing for the governor, which looked like a distributor cap, of sorts. The parts inside reacted to a flywheel with weights that in turned pulled a lever o raise the speed of the engine when a load was put on it. I used J.B. Weld, and a sheet of aluminum. I put Vaseline on the aluminum which I had wrapped around the housing, even crimping the edges till it fit tight. The aluminum was easy to form on the cap's mount to the engine. The J.B.Weld got rock hard, and the aluminum seperated and I had a perfect fix. In fact, the J.B. Weld patch was stronger than the Bakelite that is was bonded too.

    I also just made a forum and molded a lens for my 2004 Honda Accord fog lamp, which costs $349 to replace. It was cheaper to use Butyl Rubber and some Lexan. It works perfectly.

    I have a project that I am working on and will be using composites for the prototype. This forum isn't an appropriate place to post what I am designing, not yet anyways. :)
