New & Improved track plan

Discussion in 'Track Planning' started by spitfire, Sep 17, 2004.

  1. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,542
    Likes Received:
    0

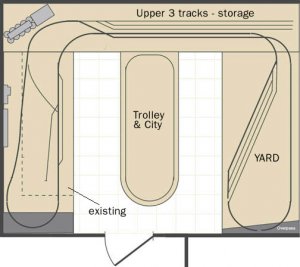

    Well, progress on my layout had ground to a halt because of a major problem due to lack of planning. Basically, I was not going to have room to turn my trolley tracks in the corner over the RR tracks.

    So, I have come up with a simple solutiom: move the city/trolley portion onto its own peninsula. It then becomes a separate module and could maybe even be swapped out with something else later on.

    This also gives me an opportunity to extend the benchwork out from the wall about a foot, which will enable continuous running.

    Let me know what you think. :)

    Val

    edit: I should also mention that there is access to the yard from both sides.

    Attached Files:

  2. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,384
    Likes Received:
    0
    Hey Val! Nice to see you posting again! I like your new plan for its continuous running and the inclusion of a continous trolley line. Is the trolley line the same elevation as the upper tracks? Are the storage tracks to be hidden?
    Ralph
  3. brakie

    brakie Active Member

    Joined:
    Nov 8, 2001
    Messages:
    2,967
    Likes Received:
    0
    Hi Val. :wave:
    If you are in the chat room tonight I have some questions and concerns.. :D I just notice 2-3 items.
  4. rksstl

    rksstl Member

    Joined:
    May 24, 2003
    Messages:
    307
    Likes Received:
    0
    I like it, but this just goes to show you that sick mind think alike. Heres kinda what I'm doing now, Val you been lookin over my shoulder :D
    [​IMG]
  5. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,542
    Likes Received:
    0
    Yes, all tracks are on the same level. The storage tracks are going to be fully visible, and will contain passenger cars which will not run on my tight curves (18") but which I like looking at! Also it could double as limited staging.

    Brakie, I'll be there - looking forward to your ideas.

    Rich - that's one good-lookin' track plan. :)

    Val
  6. Chessie6459

    Chessie6459 Gauge Oldtimer

    Joined:
    Aug 4, 2003
    Messages:
    3,000
    Likes Received:
    0
    looks good val :thumb:
  7. TrainClown

    TrainClown Member

    Joined:
    Apr 17, 2003
    Messages:
    901
    Likes Received:
    0
    Now yer cookin' ;)

    It's good to see a post from you.

    TrainClown :D
  8. RailRon

    RailRon Active Member

    Joined:
    Nov 23, 2002
    Messages:
    1,672
    Likes Received:
    0
    That's quite an extension to the already existing part which you have planned here, Val! Lots of switching potential ( I guess you'll add some more sidings for industries, won't you?)

    One little peculiarity got my attention: Your mainline crosses itself twice right below the storage tracks. Why? Do you have a special sort of operation in mind - like operating protecting signals for the crossings, beside a superdetailed interlocking tower... ??

    The peninsula in the middle of the room should give you ample room for playing out your talents for the construction of urban buildings. I'm already looking forward to see more of your fantastic city scenes! :thumb:

    Ron
  9. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,542
    Likes Received:
    0
    Hi Ron, thanks! Re your question, the only reason I have the crossing track is because I like it!!! Other than that, it wouldn't really have to.

    Chris, you're right, I haven't been posting much, mainly because the last 3 weeks of summer were taken up with visitors, relaxing at the cottage and then preparing for school. I'm quite busy with 5 classes for a total of 75 students this semester, but I hope to be around more than I have been. :)

    Val
