My Samaritan Gun Build

Discussion in 'General Card Modeling' started by Sarteret, Jul 26, 2012.

  1. Sarteret

    Sarteret New Member

    I recently joined the site because of all the cool stuff I just had to build. I fell in love with the Samaritan gun and from looking at another crafter's build. I started building my own just like Mousemuffin's .

    I have the notion to build the gun with a real working trigger hammer and full mechanism for the bullet chamber. I am also going to try and build confetti firing bullets using those little red caps for toy guns.

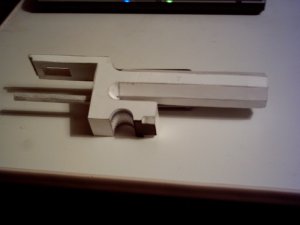

    I have started my build and almost finished the front part of the gun. I will add more photos of this later hope you all enjoy.

    Attached Files:

  2. leofirebrand

    leofirebrand Member

    Looks really good!. Cant wait to see more progress. I just started a build myself:\

    Maybe we can share ideas. I found mousemuffins build after beggining my own and he definately set the bar high!

    Are you using the same superglue method? I am curious how that works if you are.
  3. Zathros

    Zathros Guest

    That sounds really cool! :)
  4. Sarteret

    Sarteret New Member

    Regarding the Samaritan build.

    You are right Mouse did set the bar very high. As per the superglue, well let's just say that I'm following the spirit of the build and use it on edges and multiple layers and parts that I need extreme hardness. As for the rest I am using white glue for all large areas at 3 layers thick and reinforcing wherever I feel it needs it. I am almost done with the first part of the gun an can tell you that the little tabs that round out the hollows of the barrel are a pain to get in and will be covered over and sanded well. I am not going to use spray putty like Mouse did for money reasons and am using spackle as you are.

    P.S. Thanks for the comments will update shortly
  5. Sarteret

    Sarteret New Member

    Update and Progress

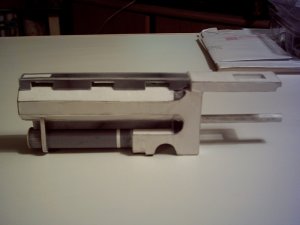

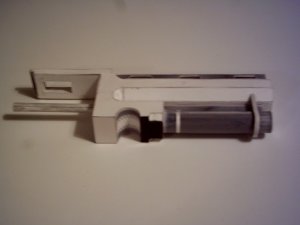

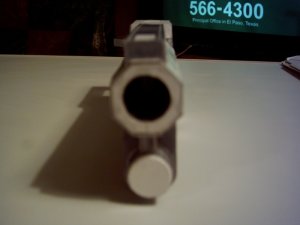

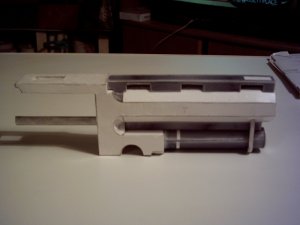

    I have almost finished the first half of the Samaritan gun and have added some new pics.

    Attached Files:

  6. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator

    It looks like you are off to a really good start.
    I will be following this thread.
  7. Zathros

    Zathros Guest

    That really looks like a gun sub assembly, not part of a paper model! :)
  8. Norton

    Norton New Member

    VEry interesting indeed, how are you gonna implement the Trigger mechanism though?
  9. Sarteret

    Sarteret New Member

    Good question!

    I am working on the second half of the gun as we speak. I got almost 3/4 ths of the way but my hinge point is all screwy and off so... Now I have to start all over. To answer your question though I was planning on making a pull slide for the trigger with an extra wide popsicle stick and a hinge point that goes to the hammer and then put the hammer on it's own hinge point. I have a clothes line clip that I cut down and have used the spring and assembly as a double sided pass point so the trigger can come back forward and reset. This is all in my mind and just a little computer simulation with some hope and prayer mixed in. I have tried to do some mock up but need the gun built to get the dimensions I need for the mock up so I need to build before I can tell for sure that everything will work the way I want. If it doesn't work at least I'll have fun building.wall1sign1
  10. Zathros

    Zathros Guest

    Sounds good, happy to see an update! :)
  11. jarobinson

    jarobinson Member

    I was really hoping to see if you got all that you wanted to get working.
  12. Sarteret

    Sarteret New Member

    No, I messed the thing up big time and got mad and destroyed it in a fit one day. I then started a new job and haven't had time to do any papercrafting. But about a week ago i bought a papercraft cutter machine and am starting to get back into things. so hopefully i will have an update
  13. Rogerio Silva

    Rogerio Silva Active Member

    Pretty please with sugar on top...

    Subcribed, and please: I wanna see that mechanism working!!! angel :mrgreen: :mrgreen: :thumb: :thumb: angel
  14. frap10

    frap10 New Member

    I'll definitely be following this. Been thinking about the internal mechanisms for things like this for a while now.

    Great work!
  15. gideon1962

    gideon1962 Member

    Merciful Heavens! A fantastic job so far, watching intently for the completed work!
