My first scratch built Railroad model.

Discussion in 'Scratchin' & Bashin'' started by Dave Harris, Oct 5, 2008.

  1. Dave Harris

    Dave Harris Member

    When I was searching for my floquil yesterday I ran across my first ( adult) scratch built railroad model. I built a couple things for my Marx set when I was about 7 or 8., but then moved into aiplanes & cars.
    I built this to prove a point , I was in a hobby shop one day in the early 70s & some guy was complaining that model railroading was too expensive , the MOST expensive hobby & NOTHING could be done for a low cost. I told him that was not altogether true & bet I could build a railroad model of something for under 3 dollars.
    There was a model contest coming up at a shopping mall & he challenged me to do that AND have it be good enough to enter the contest. I don't usually do contests but agreed.

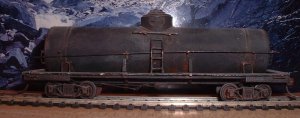

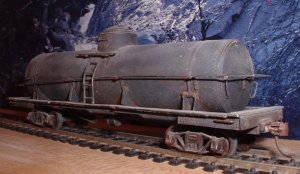

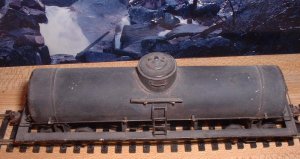

    This is what I built , I had no plans or pictures, I drove by the railroad yard & looked at a tank car for a guide. I am aware this does not prove to be accurate in all details, but at the time I WAS NOT really a model railroader . The only thing I bought for it were the trucks & couplers, the tank is PVC pipe, the dome a copper tube cap with something out of the scrap box glued to it-- an army tank hatch I think.
    It did cost under 3 dollars AND won it's class in the contest bounce7

    Attached Files:

  2. Dave Harris

    Dave Harris Member

    I just realized , I still have the jigs I made to make the hand rail supports!!:p
  3. Ralph

    Ralph's for fun!

    That's great Dave! How did you create the riveting at the ends of the tank?

  4. Dave Harris

    Dave Harris Member

    As I recall, I used a .003 strip of copper sheet that I hid the seam of under the band around the tank.
    The convex ends were formed by squeezing a piece of stryene between two concave freeze plugs & then heating it with a butane torch till it took a set.
  5. TrainGuyRom

    TrainGuyRom Member

    It's a little lumpy, but 3$!!!! that's amazing!!jawdrop
