  5. Revell-Fan

    Revell-Fan Co-Administrator Administrator

    Hello again!

    The physical model is (finally) on its way. The block strategy is working fine. All parts are logically conceived and can be assembled like lego stones. They fit only in their intended positions, the model gains stability, minor alignment problems and inaccuracies are covered by other parts. 90 % of the parts are unfolded and standing by for test building. Some of them are pretty tricky, so the blaster is suitable for the advanced modeler (beginners may give it a try though, too! :mrgreen:).

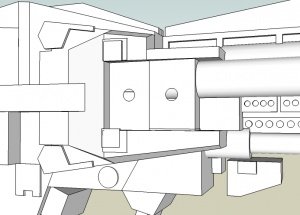

    These are the first 13 parts of the blaster, unfolded and assembled. I am making a white model first to save ink. Despite expectations the big aft block has proven to be the hardest part to unfold and assemble so far. It looked so easy and elegant on paper, but putting it together was a nightmare. The pictures show the first try. It is flawed because I used water-based glue which caused torsion. In addition, the part was so compact that the small recessed areas at the end cap couldn't be assembled any more. The second version was discarded because of alignment problems. The third one looks better and will become the final one. I chopped the block into three segments which makes assembly much easier; I hope it overcomes any torsion problems, too, even if you use solvent-free glue. The existing cutting lines will be covered by a textured piece of paper.

    The handle is a bit weak and needs some reinforcement. This will be done by adding a simple box between the two halfs which will prevent the handle from being crushed by a strong grip and which will serve as a battery case. It will be covered by the raised texture part of the handle. :twisted:

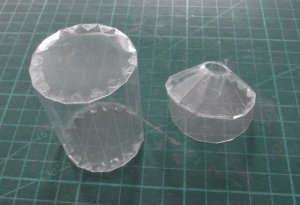

    I am also redesigning the muzzle. My first idea was to simply add strips of paper to the front cylinder to create the raised areas. Now I see that it is necessary (and possible) to actually create 3D elements which are glued to the surface. Unfortunately, this increases the number of parts and makes assembly a bit more time-consuming, however, the overall appearance will benefit from it in the end.

    And I can tell you one more thing: If you believed that the windows of the Buck Rogers Thunderfighter Quad were difficult, wait till you see the greeblies of the blaster. They are small, and they are many..! :p:p:p:p

    CU! :wave:

    Attached Files:

  6. eugentoth

    eugentoth New Member

    cool i can't to see the finish model
  7. MTK

    MTK Active Member

    Frakkin Aye! Nice work, can't wait to build this.:mrgreen:
  8. Big Al

    Big Al Member

    This is so cool!!!!! Can't wait to see it!
  9. MTK

    MTK Active Member

    I know, me too.:thumb:
  10. Rissa

    Rissa New Member


    That really is some amazing work. Cant wait to see the entire thing done.

    Very nice.
  11. Revell-Fan

    Revell-Fan Co-Administrator Administrator

    The revised muzzle is ready. Fortunately there are only three different detail pieces which have to be unfolded :mrgreen: . Unfortunately each piece appears 16 times on the model, so it has to be assembled 16 times :cry: .

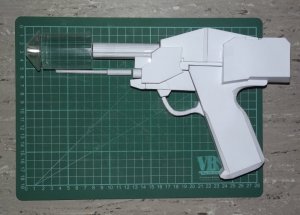

    I have finally solved the aft block problem, too. I chopped it into two halfs which makes assembly much easier. In addition, you won't experience any torsion problems any more even if you use water-based glue. However, the foldings are still veeery tricky, so take your time. And if everything fails, you may print the parts again and give it another try. Due to the flash you don't see the foldings clearly (one of the disadvantages of photographing a white model; I hope to get a better contrast when it comes to the textured model). cb25.jpg shows the current state of the blaster (the gaps will diasspear once all parts are glued together).
