    I spent the day working on the yard, soldering wired rail joiners, fitting track etc.

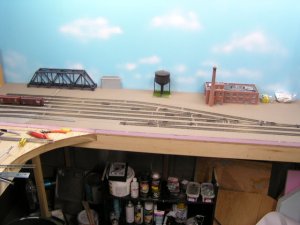

    In the first photo we're looking east along the CN and CP mainline. CP is the inner track, but there's an interchange with CN. The yard is above.

    In the second photo, we're looking west. The track at the far back is the yard lead. Beside it is the CP splits into a northbound and westbound track. In front is the CN main, which crosses over the CP track to reach Massey Ferguson.

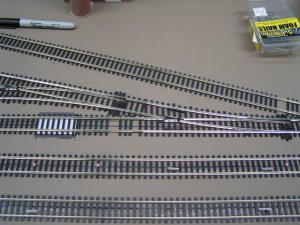

    The last photo is just a closeup of the track. I wish I had gone to the trouble of getting homasote, rather than foam. I don't like gluing track - I'd much rather spike it. For some reason the photo makes the track look bowed - it's not though! I was very careful about that!! :)

    This is loosely based on the real Parkdale Yard, a very busy downtown yard serving the numerous local industries in the immediate vicinity. That area was heavily criss-crossed by competing CN and CP trackage.

    Attached Files:

  2. bigsteel

    bigsteel Call me Mr.Tinkertrain

    looking good spitfire :thumb:.this is definatley goign to be a SWEET layout when its finished.--josh
  3. Gary S.

    Gary S. Senior Member

    I agree. Looking really good, keep up the work and post photos!
  4. doctorwayne

    doctorwayne Active Member

    Nice to see that you're back at work on the layout, Val. It's really starting to take shape. I have to agree with you about spiking the track down, though: it just seems more "right" than using glue or caulking. ;)

  5. UP SD40-2

    UP SD40-2 Senior Member

    Looking good Val!:thumb::thumb::thumb: BTW, your clouds and sky look SLAP AWESOME!!!:winki::mrgreen: .
    :deano: -Deano
  6. cn nutbar

    cn nutbar Member

    hi val---for someone like myself who is still in the processing of developing my "layout",this thread is very inspirational---thanks for sharing and hope to see more as things take shape---nutbar
  7. Ralph

    Ralph's for fun!

    Looking great Val! I like the placement of the bridge in the top photo. Will it be part of a dummy line for scenic effect?
  8. w8jy

    w8jy Member

    Val, that layout is looking great! Please keep posting pics as you make progress - it looks like it has great potential.
  9. spitfire

    spitfire Active Member

    Thanks very much for all the kind words everyone, it's very inspiring!

    Ralph, to answer your question about the bridge, to its left you can just see the city part of the layout. The bridge is for the main road coming out of the city and over the yard. That is, if I can manage to get the road up to the needed height without it looking ridiculously steep. I may shave down the piers a little bit as there is more clearance now then I really need. No autoracks in the 50s to worry about. :)

    I'm pretty excited about the "on-the-fly" changes I made to the track layout, as seen in this drawing.


    I now have a second CP mainline branching off northbound (6) - the MacTier Sub. This is going to provide a great source of both inbound yard traffic and for passenger trains passing though.

    Since the prototype Parkdale Yard had to do switching on the mainline, this additional through traffic will make sure the yard crew has to work very quickly to clear the A/D track (ie the mainline).

    I also managed to work in a crossover, where CN crosses the CP main to get to its customer Massey Ferguson.

    In reality, that part of town was once totally criss-crossed with competing trackage, and was Toronto's main industrial area since the early 1900s. Of course, in a limited space I can only hope to give an impression of what it was like, but for my purposes, I think it will.

    Thanks again all. :D

  10. eburchell

    eburchell New Member

    Very nice Val. Good work. Lots of switching potential, and all those crossovers definetly captures the competition between the biggest railroads in Canada. Well done. Hope to see many more photos of your progress.

    Ed Burchell
    Canadian Eastern Railway
  11. spitfire

    spitfire Active Member

    Thanks Ed.

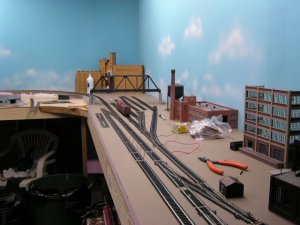

    Well, I spent the day hard at work - and it really did feel like work too. 7 hours of soldering, cutting, filing, and gouging fingers with rail joiners later I have finished laying all the track in the yard.

    At last, I have the yard back almost to where it was before I tore out my old layout.

    Attached Files:

  12. Gary S.

    Gary S. Senior Member

    Great progress, Val. Keep up the good work. I am very much interested in your layout and what to see more.
  13. TruckLover

    TruckLover Mack CH613 & 53' Trailer

    WOW awesome work Val!!!! I like that Machine shop, looks sweet!!!! :thumb: :thumb: :mrgreen:
  14. spitfire

    spitfire Active Member

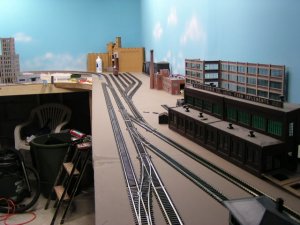

    Thank-you Gary and Josh. Josh, that's the Walther's machine shop - a nice kit IMO. The dark brick building with the clerestory window is the molding shop - where they do castings for some of the parts.

    Meanwhile, it's 2 steps forward and 1 back. I discovered a huge gap between the turnout and one of the yard tracks so I've ripped it out and will be re-laying that section. A lot more trouble when you have to glue down track, as opposed to spiking. At least the latex caulk I'm using doesn't do much damage to the underlying foam - it fact, it seems to peel off quite easily.

  15. MasonJar

    MasonJar It's not rocket surgery

    Great stuff Val! Thanks for giving us an update.

    You might be interested to note that I spend part of Sunday on a HOTrak set-up switch job - the Massey-Harris works on club member Ben's Brantford modules. Only partly done, but lots of fun to switch.

  16. spitfire

    spitfire Active Member

    Wow - that's cool Andrew. Any chance of some pix?

  17. MasonJar

    MasonJar It's not rocket surgery

    Sorry Val,

    Both rechargable batteries for the camera were dead :(

    I'll see if I can find some of his work soon. Maybe a track plan too - although it follows reasonably closely the plans he laid out in the two (I think) articles I sent you.

  18. spitfire

    spitfire Active Member

    No probs Andrew. I will have to do some digging for those articles. There's a fairly large area left on the layout (a peninsula) that I haven't totally figured out what to do with yet and I'm looking for ideas.

  19. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

    Been a loooooong time val. Good to see you back in the mix. Took me awhile to catch on(How come this "spitfire" handle looks familar?)
    Always looks good Val!

    Also missed the hell out of you.......
  20. spitfire

    spitfire Active Member

    DUUUUUUUUDE! I missed you too. It's great to be back and working on the layout again. :D :D
