John C Butler Class DE Build

Discussion in 'Ship & Watercraft Models' started by Chief400, Jan 5, 2007.

  1. Chief400

    Chief400 Member

    Joined:
    Dec 4, 2006
    Messages:
    71
    Likes Received:
    0

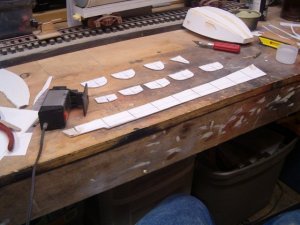

    Ok....I have collected enough data, and I think I'll start the show. This is my first full hull build and its gonna be a kit/scratch/bash. Enlarged the plans for the hull and laminated them to the cardboard backing off of an old drawing pad. Now the fun part, cutting out the keel and the bulkheads. It just so happens that I have a minature jigsaw made by Microlux that is just dandy for cutting the thick cardboard. Here the 10 pieces of the eggcrate are laid out, ready to be sanded, slotted and fitted....Still have to do the spacers between the bulkheads.....

    Attached Files:

  2. cmdrted

    cmdrted Active Member

    Joined:
    Jul 9, 2004
    Messages:
    1,804
    Likes Received:
    0
    That is the neatest jig saw. Is it straight 110v or is it a DC transformer tool? Looks like you have the hull laid out pretty well. My first scratch build was the Evarts class DE. These are fun ships, good luck!
  3. Chief400

    Chief400 Member

    Joined:
    Dec 4, 2006
    Messages:
    71
    Likes Received:
    0
    YEah theres a power supply involved. Mine actually came from Sears as Craftsman had a Mini Tools line fer a while. Microlux is sold at Micro Mark, there is also a mini belt sander I have found invaluable, I actually wore the first one out. Theres also a Proxxon line and a Minicraft tools line. Every modeler needs to have these in their arsenal!
  4. hasse neren

    hasse neren New Member

    Joined:
    Dec 10, 2006
    Messages:
    16
    Likes Received:
    0
    Hi Chief400.
    Warship Number 11, DESTROYER ESCORTS in action from The squadron/signal puplications have nice references and pictures of your destroyer escort.
    Hasse.
  5. rlwhitt

    rlwhitt Active Member

    Joined:
    Aug 25, 2006
    Messages:
    1,171
    Likes Received:
    0
    Chief, what do you use for a cutting surface when doing these formers? IOW, where does the blade go? Or do you just freehand it in the air? :grin:

    I was considering a Micromark scroll saw, but have been put off by the price relative to how often it'd get used. This might be an alternative.

    Rick
  6. Chief400

    Chief400 Member

    Joined:
    Dec 4, 2006
    Messages:
    71
    Likes Received:
    0
    Thats Good to know! I just ordered it from Hobbylinc.com!

    Theres a stand that you can get with the saw, that makes it into a table top jigsaw, but I either freehand or jus keep moving the workpieceso th immediat cutting area hangs over the edge of the table a bit , while the rest of the sheet is still supported. Sears doesn't carry them anymore (At least not that I have found, be glad to be proven wrong) but its well worth the investment! I use it on all sorts of projects.
  7. Chief400

    Chief400 Member

    Joined:
    Dec 4, 2006
    Messages:
    71
    Likes Received:
    0

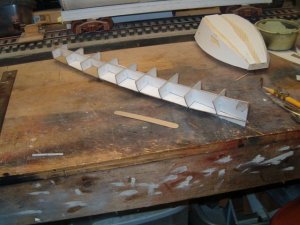

    Made some progress today! Slotted the bulkheads, and cut out the stringers at the waterline. Glued it all together, still needs some sanding, but its starting to look like a DE! First view is from above.....the second from the keel. Card modeling is too cool!

    Attached Files:

  8. jasco

    jasco Member

    Joined:
    Jan 5, 2005
    Messages:
    174
    Likes Received:
    0
    Ah, scratch cardmodelling without a computer program... That's something I can sink my teeth into! I will be fascinated to see how you derive the shape of the hull sides. Will you do an expanded drawing on the drafting table, cut and fit, or what? Also, what is that cool looking pine block in the background?
  9. Chief400

    Chief400 Member

    Joined:
    Dec 4, 2006
    Messages:
    71
    Likes Received:
    0
    Atually what I've done so far was a free download of a Uraguay NAvy CAnnon Class DE. I used Adobe Acrobat to up size it to 155% to get it in the 1:200 range. The deck and hull sides were included, So I'm just gonna enlarge them too. Need to sand the frame up real good. As a mater of general practice, the deck tends to be a heavier laminate too doesn;t it? I can cut it to shape but I can't detail it yet without good deck plans (which I'm hopin are enroute) But if anyone out there can help it woul be truley appreciated! That big chunk of wood is the top half of the bow section for a Mercury Class Battlestar in 1:2500 scale .....
  10. Maurice

    Maurice Member

    Joined:
    Jan 16, 2004
    Messages:
    541
    Likes Received:
    0
  11. hasse neren

    hasse neren New Member

    Joined:
    Dec 10, 2006
    Messages:
    16
    Likes Received:
    0
  12. Chief400

    Chief400 Member

    Joined:
    Dec 4, 2006
    Messages:
    71
    Likes Received:
    0
    Boy the Cannon Class has reall got a lot of documentation! Hardly anythig for the John C Butler though! Got good info on the 5" gun turrents at this site:

    http://www.de220.com/

    Also some really good deck views of USS TWEEDY in Mothballs undergoing an Incline Test.

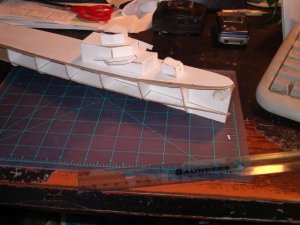

    I did a mockup from paper using the enlarged download files, I think it pretty good, mind that its only foloded and not glued in anyway, just checking the overall size. Opinions? Next to redraw in CAD, Color, add some details....

    Attached Files:

  13. hasse neren

    hasse neren New Member

    Joined:
    Dec 10, 2006
    Messages:
    16
    Likes Received:
    0
    Hi Chief400,
    notis that you do the same thing as i do, in my building. Asking for help and looking after fact´s of the real ship i´m building. That´s i think is the only way to make a nice replica of a real ship. Currently my self I´m building plastic ship models and i have been on forums and on the www. for mounts now, for to get good references and detail photos of the ship i´m curently building. Have to finish my plastic models, and after that it´s the ELBE HIGHWAY in 1/400 scale thas going to be my next object. My first card model. Keep on Chief400 your Escort Destroyer going to be great.
    Kind regards Hasse.
  14. cmdrted

    cmdrted Active Member

    Joined:
    Jul 9, 2004
    Messages:
    1,804
    Likes Received:
    0
    Chief, looks good so far, are you going to hull plate her from scratch? If so clean up the formers 110%. Make sure all the fuzz is off and tapers for each former. I tried once with the formers squared and it gave her the lean dog look. So far so good, good on ya' Chief!
  15. Chief400

    Chief400 Member

    Joined:
    Dec 4, 2006
    Messages:
    71
    Likes Received:
    0
    Ohh yeah...I got lots of sanding and cleanup to do on the hull yet.....I need to get a footprint of the superstructure so I can draw up the deck and laminate it so it can get sanded down to spec too. I also plan to 'pad' her ribs with strips too keep er from looking emaciated when the hull plates go on.

    Hasse, the onlyway to go! I have been know to use a plastic model from another scale as a guide for a project......
  16. Chief400

    Chief400 Member

    Joined:
    Dec 4, 2006
    Messages:
    71
    Likes Received:
    0
    I've noticed something interesting about card modelers, you are either scratchbuilders totally or ya build kits as they come. theres no, "scratch bashing", at least not that I've seen. Doncha all take parts form one kit and combine with other pieces parts to make something new and different?

    Fer instance. I spe4nt all day sunday designing and building 5" turrents....I ended up with something moderate, but I still wasn't pleased, just so happens I was looking at Gremir's EXCELLENT USS Selfridge.....Wassdat? Right there....Above the Aft Dual 5" turrent? WHY THATS A SINGLE 5" TURRENT! And look at all thos e yummy detail parts to use! (That Scurring sound is me uploading funds to the PayPal Account) ZAP YA! I was gonna get the Selfridge anyways! now I got a REASON TO!]

    Now I'm cruising looking for DE photos...and I run across a USS JAccard....hmmm now where have I heard that before??? SUNUVAGUN!!!!!! A quick trip through PMS's Search Engine (Who would thunk that PMS could be a pleasent Acronym?) and I come up with a FLY MODELS USS JACCARD in 1:200 scale nonetheless! and theres a Jap destroyer as a bonus! WOOT! More bash fodder!

    OK so I've now dedicated about $24 to what was a wholly free project.....but what the hoot? I'm gonna have a lovely model that no one else in the world's got! That my friends is PRICELESS!!!!!
  17. RyanShort1

    RyanShort1 Member

    Joined:
    Feb 4, 2004
    Messages:
    439
    Likes Received:
    1
  18. Bowdenja

    Bowdenja Active Member

    Joined:
    Sep 26, 2005
    Messages:
    2,970
    Likes Received:
    0
    Aw........... Ryan, next you'll be telling him Santa isn't for real:grin:

    john
  19. Chief400

    Chief400 Member

    Joined:
    Dec 4, 2006
    Messages:
    71
    Likes Received:
    0
    'UMMMM YEAH! thats what I'm resizing to use as a superstructure, its a pdf of a scanned hand drawing, looks good as is, but I can do better! The turrents aren;t 'quite right' to my eye......Sorry I thought I had posted allthe appropriate links! No bubble burst here!
  20. RyanShort1

    RyanShort1 Member

    Joined:
    Feb 4, 2004
    Messages:
    439
    Likes Received:
    1
    Whew! I'm glad that it wasn't a problem!
    I really am enjoying the thread!

    Ryan
