HO Design Built with N Guage

Discussion in 'N / Z Scale Model Trains' started by sapacif, Jun 5, 2003.

  1. sapacif

    sapacif Member

    I have heard that a very good layout to build is a good design HO layout built with N scale track. It makes for more scenery and an uncrowded layout. Any opinions? Are you losing the advantage of N scale by doing this or are you maximizing an advantage of N scale?
  2. billk

    billk Active Member

    You are maximizing one advantage - it makes the RR look ilke part of its surroundings - but you are losing the advantage of being able to put more track, and therefore operational possibilities, into a given area.

    Guess it depends on what you're after. Personally, I think it's a good idea.
  3. davidstrains

    davidstrains Active Member

    I agree with Bill, it is a great idea. More track and operating possibilities in a given amount of space.
  4. 60103

    60103 Pooh Bah

    I've suggested this a few times, but I don't know if anyone's taken me up on it. If you take a HO layout with 18" radius curves and 4% grades, you can get a N layout with 18" radius curves and 2% grades. And twice as many cars in the sidings.
  5. RailRon

    RailRon Active Member

    Flash, that's exactly what I did.

    I took a 4x8 ft H0 track plan (Nr. 24) out of Kalmbach's '101 Track Plans'. This was not more than a tight figure-8 line plus a small yard with room for perhaps 5 boxcars per yard track.

    Then I built the 4x8 ft layout, but in N scale. Mind you, there were still quite tight curves, but compared to the original I had now lots of room for scenery, managed to sneak in a whole engine terminal (in the background) plus a few addidional sidings. All this made for great operational possibilities.

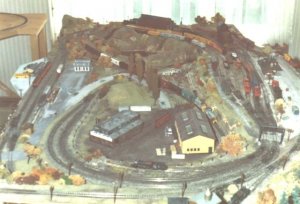

    As you see on the picture, there is quite a bit of free space for scenery between the tracks. And don't forget - the footprint of the N scale buildings is also only 1/4 of the same H0 building - another gain of room for scenery!


    Attached Files:

    • tcs1.jpg
      File size:
      48.7 KB
  6. Matthyro

    Matthyro Will always be re-membered

    Good looking layout Ron.
    The only thing to watch for is if the HO plan has aisles. Keep the aisles at least 24inches for manouvering room.
