Here we go! Gotta start somewhere.

Discussion in 'N / Z Scale Model Trains' started by TrainNut, Oct 10, 2006.

  1. LoudMusic

    LoudMusic Member

    I sat here stairing at those pictures for five minutes before I realized my mouth was hanging open.

    I'm very jelous. Hopefully I can incorporate something half that size into my future project.
  2. TrainNut

    TrainNut Ditat Deus

    This photo was my inspiration. It's a highway crossing the Rio Grande just outside of Taos, New Mexico. Of course, I used my artistic embellishment and modified it somewhat. & I will have much more vegetation. I dunno.... we'll have to see how it develops.

    Attached Files:

  3. LoudMusic

    LoudMusic Member

    Wow that's a pretty shot.
  4. Matthew Mahling

    Matthew Mahling New Member

    Did they give you a bulk discount on all that foam or just a charge account?
    Your foam stacking on the layout is almost as awe inspiring as that excellent reference photo you have supplied.
    Can't wait to see this progress..
  5. TrainNut

    TrainNut Ditat Deus

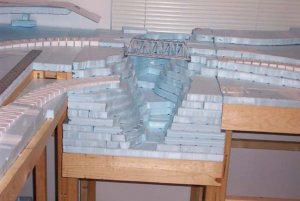

    Right you are Don. The depths from my bridges ranges from 8 to 10 inches which equals an N scale range of 106 to 133 feet.
    I don't see why you can't do it also. The whole canyon section only takes up 21.5"wide by 28" deep by 10" down. It's not that big. Illusion my friend... illusion.
    Yes, I definitely want to update with pictures. Should I keep them all in this thread thus having the potential of ending up with a thread a zillion pages long or should I post a new thread with each update (such as "gotta start somewhere. Here we go 10-18-6"?)
  6. TrainNut

    TrainNut Ditat Deus

    Funny you should say that! I have not used that much foam. What you don't see are the big holes within the structure where I just used spacers to keep from using so much foam. I think I am up to 6 sheets of 2'x8'. I only expect to need 2 more for the second level of the long leg. The rest, I will build up using newspaper and Woodland Scenics plastercloth. I may be up to $200 so far for the entire layout (lumber, cork, foam, wheels, screws, etc.)
  7. LoudMusic

    LoudMusic Member

    I'd keep them in one thread. Less to track down when you want to reference the whole thing :)
  8. Triplex

    Triplex Active Member

    Use different kinds for at least some of them. You can have, say, two the same, but five the same will look boring.
  9. TrainNut

    TrainNut Ditat Deus

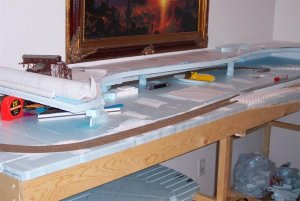

    Just a photo update...

    Attached Files:

  10. smullen

    smullen New Member


    AWSOME work!!!! I can't wait to see more updates...
  11. zedob

    zedob Member

    When I built my last layout I had a section of foam that was supported on 3 corners (it was triangular shaped in the corner of my L-shaped layout) so it bridged an area of about 12-14 inches. Not unlike what you see in the photos above. Compaired to the fully supported areas it was extremely noisy. This area was not at all sceniked, so I can't tell you if it would have been quiet, but it sure didn't seem like it would be.

    Just a heads up.

    It was also in HO.
  12. n2trains

    n2trains Member

    Wow, that canyon's just about as large as I've seen on a layout that size. VERY impressive. And the description was a little clearer than mud. it'll look AWFULLY impressive when it's all in place, even without being completely scenic'd, the bridges with the foam look pretty cool I think. Keep it coming!
  13. 60103

    60103 Pooh Bah

    Comment: I think railroads tended to put most of the bridge under the track unless there were clearance or construction issues. Think about using the truss bridgeeither at the lowest point or if one trach is close to another.
    John Allen built a mountainside where he had a pile of bridges going up and each one was different.
  14. TrainNut

    TrainNut Ditat Deus

    Good comment. Thanks. I'll put that in the bowl to think about.
  15. Nazgul

    Nazgul Active Member

    What a great job you're doing! That canyon is going to be a wonderful focal point!:thumb: I'm planing a small canyon (ravine) that goes down below the bench work....but nothing like that! I love the idea of multiple bridges.:thumb: :thumb: GOOD STUFF! keep posting:wave:
  16. fsm1000

    fsm1000 Member

    Coming along well. Keep it up :)
  17. Papa Bear

    Papa Bear Member

    Nice work on the canyon, Train Nut! Can't wait to see more. :thumb:
  18. MilesWestern

    MilesWestern Active Member

    WOOOOWWW!!!!! jawdrop EXCELLENT WORK TRAINNUT!!!! Can't wait to see what you're going to do with that canyon!!! :eek: Are you just going to use those kato bridges? it would look rather monotonous wouldn't it? :confused:
  19. Pitchwife

    Pitchwife Dreamer

    Great looking design TN, very impressive. :thumb: Thought I might share an idea that I came up with on a design I came up with several years ago. On the back wall of the canyon position a mirror that reflects the hidden back curve of the canyon. It will give the illusion of more depth. Don't know if that would work with yours, just a thought. :wave:
  20. TrainNut

    TrainNut Ditat Deus

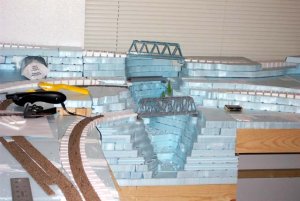

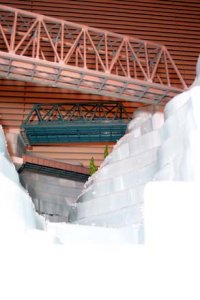

    Nahhhh, the image with all the Kato bridges was just a little Photoshop magic to give me an idea of what it could look like. Since then, due to some thinking of my own and some advice of others, I have decided to break it up a little. In the following pictures, you can see kind of where I am at now with the three bridges. The other two bridges (not in the picture) are very close but different elevations. I was thinking of trying to bash some sort of a Californian concrete arch design for both bridges (not sure how to go about this just yet). I dunno yet - work in progress!

    I like the mirror idea. I've always liked the way the mirrors work but it takes some trickery to make 'em look just right... for me it does anyways. I will continue to think on this idea. Right now, towards the back, my canyon takes a sharp hook to the right and then peters out into nothing out of sight. I'm gonna have to think about where to place that mirror to make it look just right.

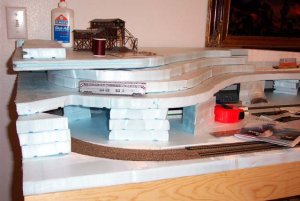

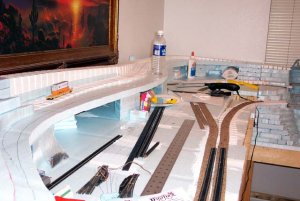

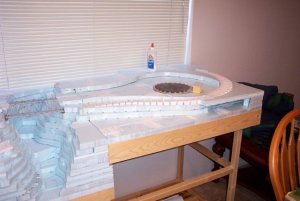

    As you can also see, the left leg has been under development as well this week. I've pretty much gotten all the major pieces of foam cut and the rest of the terrain forming will be done with newspaper and WS plaster cloth. Currently, I am cutting pieces to act as supports for the second and third level.

    Up on the third level towards the left end where I used to have the dead end branch into the mine, I have decided to be brave and attempt to add a very tight radius (8") reverse loop. I think that will improve mine operations instead of having to stop on the main and back all the way up that grade to the mine (or some kind of industry... haven't decided for sure just yet).

    Thanks all for the comments. I thrive on that kind of stuff and it is really neat to get feedback.

    Attached Files:
