Building of Nieuport 11, advice needed

Discussion in 'Aircraft & Aviation' started by shika, Sep 17, 2012.

  1. shika

    shika Member

    Dear Zathros,

    I printed out Nieuport 11 once again. This time in its original scale 1/48.

    I've already cut these parts from the paper.

    However, for many parts I circled in red I'm not sure where are they belong.

    So, my first step to building this Bi-plane.

    Can you help me specify these parts?

    I've already labeled the parts I know.

    Thank you.


    Shika ^ ^

    Attached Files:

  2. shika

    shika Member

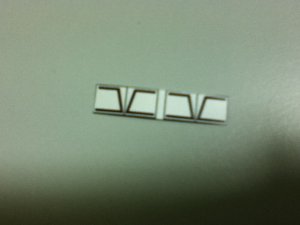

    This part, I believe it is windshield windows.

    Should I cut it out and left only frame part, then glue with
    plastic from water bottle? Or should I just leave it. Maybe paint it in blue color.

    Attached Files:

  3. shika

    shika Member

    The reference picture I've got so far.

    Attached Files:

  4. Zathros

    Zathros Guest

    Here is a link to the designers pictures of the model:

    If you study these pictures, you will see where most of the parts go. They enlarge pretty big.

    I have this model. I will study it and see if I can come up with some instructions and recommendations tomorrow. :)

  5. Burning Beard

    Burning Beard New Member

    For a start....

    The top image:

    Tail skid, not sure about the next think, engine access panels (one each side) an the grey thing is a tube just above the access panels.
    Front of fire wall (just behind engine)
    Control horns for the elevator
    Cabane struts

    Second image:

    Cowling parts, ring in front, triangle just behind the cowl (oil deflector or sumpin')
    Exhaust pipes (for each jug)
    Not sure, may be front of engine
    Goes in front of the firewall, fits the half circle on the grey piece
    Cockpit, think the thing on the left supports the seat, could be wrong
    Back of instrument panel, next maybe the back of the cockpit
    The thing above the gun is the magazine for the Lewis gun

    Thats all I got
  6. Zathros

    Zathros Guest

    Actually, shika, if you look at the link I gave you, the pictures there will guide you through the model pretty well. :)
  7. shika

    shika Member

    Thank you burning beard and Zathros.

    Let's get started.

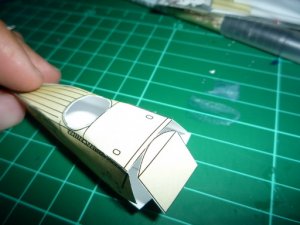

    I used cutter to cut out cockpit.

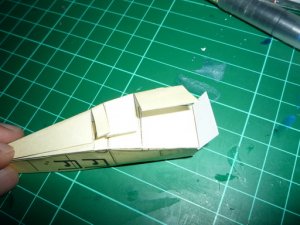

    Now for the main fuselage, looking at the pictures, I think I should glue
    the overlapping part at the bottom of the main fuselage.

    Should I proceed on this step?

    Attached Files:
