Building my own x-wing

Discussion in 'Science Fiction & Fantasy' started by dnalor, Apr 18, 2012.

  1. dnalor

    dnalor Active Member

    Thanks for all the kind words..
    The cockpit looks great in reallife..
    But i hope i can install it in the x wing...
    somehow there isn't much space for the cables. :)

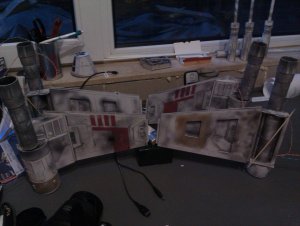

    in the meanwhile i finished the first gun....AND DAMN...i hope i the 4th gun looks like the same as the first :mrgreen: (its really difficult for me)

    Attached Files:

  2. zombieofthepast

    zombieofthepast O.D.S.T.

    Beautiful. That is all.

  3. dnalor

    dnalor Active Member

    Almost ready..
    Just a few little parts..and finally ready to attach them to the fuselage.

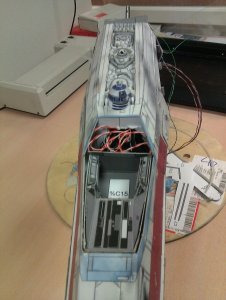

    first the cockpit..

    Attached Files:

  4. dnalor

    dnalor Active Member

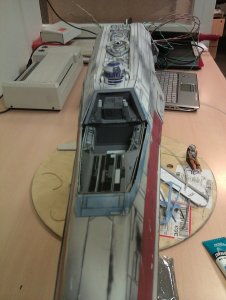

    today all Leds are running in the cockpit..

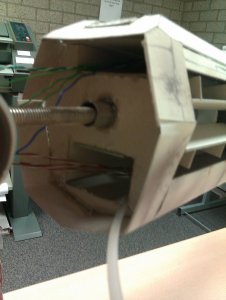

    but the next problem doesn't fit in the fuselage..
    so i have to cut some space in one of the ribs...

    That idea of Zathros wasn't that bad :)
    I should start to listen to other people then this would be easy :)

    Attached Files:

  5. Zathros

    Zathros Guest

    It looks like you can cut the back fuselage former and stuff them in there, This is what I thought was going to happen. I used to have friends that made harnesses for every helicopter Sikorsky made,. They would lay the harness on a full sized board that had the full outline of the helicopter with areas coded represented solid walls, holes, etc., so they would know how the harness was going to look, and where to have disconnects. The wiring looks like it could be significantly reduced by using the micro crimp connectors. This would essentially have all the power leads to thee covered LED bulbs terminate at the firewall behind the seat. You could actually make that panel a board to plug the power leads into by making it an electronics panels such that if any repairs are needed, you mere pull a wire out of a hole and replace whatever may be necessary.

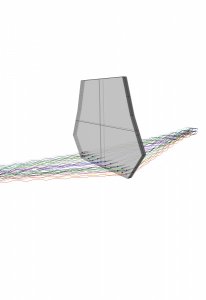

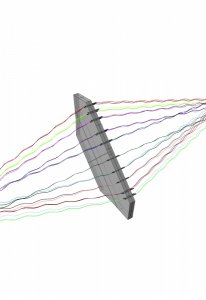

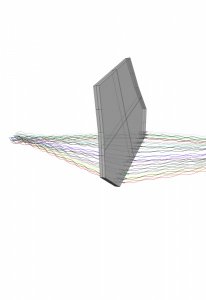

    I attached a drawing to try and explain what I mean. It's not to scale, or the right shape, a represenatation, but it conveys the idea. It's kind of a panel box, without the box. Tinning the wire ends with solder would allow them to act as pins you would insert into the connectors. I would solder the power side into the pins. 1MM card stock and some crazy glue will hold the pins in place (plus a tight hole). This would allow you to place the wires flush against the fuselage. and the LED's inside the nose, or wherever is necessary.

    Just a suggestion. It adds a lot of work though. Nothing more than a suggestion that popped into my head. :)

    Attached Files:

    • DN1.jpg
      File size:
      32.8 KB
    • DN2.jpg
      File size:
      37.8 KB
    • DN3.jpg
      File size:
      51.7 KB
  6. dnalor

    dnalor Active Member

    That connector part is a smart thing..
    only i don't know if i want to repair a lightbulb when its burned out.
    when i installed LEDS i hope they will last around 50.000 hours..
    when the x wing will last also that long i'm a Very happy guy...when a few years shorter then just a happy one :)

    So that fuselage-backformer will have to go or will be cut so that i have a little more space...
  7. Zathros

    Zathros Guest

    I can totally understand that. It's one of those things if you made an access panels, and had the LED's pushed in, with short Fiber Optics pieces 3 mm or so, sticking through the panel, it would be a good idea.

    Like you say, these bulbs last for ever, except if they get a power surge. Otherwise, you will probably never need to replace them. It's looking great! :)
  8. THE DC

    THE DC Member

    This is truely an inspiring effort.

    Watching closely.

    The DC
  9. dnalor

    dnalor Active Member

    YES it's in.
    Tomorrow i need to take my laptop for testing the light....i hope they survived the installing :)
    Then i can glue the cockpit in his final place..


    Attached Files:

  10. DanBKing

    DanBKing Active Member

    Have you got the cd player, amps and speakers installed yet ....???. :)
  11. dnalor

    dnalor Active Member

    i ordered a television large enough for some fun.....:)
    when it works
  12. dnalor

    dnalor Active Member

    Yes all leds are working :)

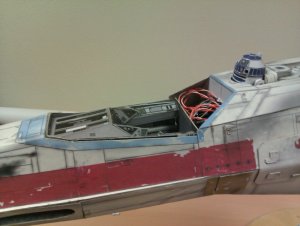

    cockpit is glued and back piece installed.

    Attached Files:

  13. ureeka2k

    ureeka2k New Member

    wow, that is incredible. love the size and detail, how are you going to display it when you are finished with the build?
  14. dnalor

    dnalor Active Member

    Well i want to place the x wing in flightmode against the wall, in my computer-room
    one wall has the millenium falcon..
    now another wall gets the x wing....when every thing goes how i plan :)

    Then i have 2 walls left...:)
  15. DanBKing

    DanBKing Active Member

    PLLEEEEAASSSEEEEEE can I get in and fly her????????????

    Looks like you could.....!!! Nice job!

    Ik heb net glasvezel in mijn huis geinstaleerd..... De monteur heb me rond 10m kabel, wat bestaat uit 96 individueel vezels, gebundeld in 9x12, achtergelaten......

    Is die soort gebruikbaar voor modellen, en wat moet ik doen om er te testen???

    I'm thinking it might come in handy for the Space Staion V model (yet to be built) for lighting.......... Sorry for the cr*p Dutch!! Even though your Belgian.. :)
  16. dnalor

    dnalor Active Member

    Ahum...for the dutch guys..:
    Nee die glasvezel heb je niks aan die is te dun..
    en als je die gaat schillen zit er een of andere rotzooi gel in (krijg je moeilijk uit de kleren) ik zou hem weggooien..
    daar heb je echt niks meer aan..zelfs niet voor je netwerk.

    En pasop dat je geen kleine stukjes glasvezel in je krijg of je er mee prikt want het is echt glas en flinter dun....en je vind het nooit meer terug. ook de dokter niet.

    Je moet naar de action gaan daar heb je van die princessen toverstafjes met van die speelgoed vezeltjes..die heb ik gebruikt voor mijn cockpit.
    AH je hebt ook van die ufo lampen...die fibers zijn ook goed voor zoiets.

    For the english guys..

    Real fiber-cables can't be used for models..
    the fibers are to thin and fairly dangerous for you health.
    You should use fibers that are used in toys...or those ufo lights with those fiber hairs.

    Ah...and i am dutch i only live in belgium...:)
  17. DanBKing

    DanBKing Active Member

    Yeah, I was warned about the dangers of that stuff....... OK, noted.

    A bit more rubbish to join the 'grofvuil' from the last few weeks.......:rolleyes:

    I LOVE ACTION!!!!! The shop, that is ...........
    But a bit of action is always welcome too...... ;)

    And a Dutchman living in Belgium............ Mmmm, I promise I wont make any jokes about it ....:mrgreen::rolleyes::twisted::mrgreen:
  18. vulcan8630

    vulcan8630 Member

    Found this place online which may help you or others in supplying cool mini lighting for your modelling purposes:

    I believe the fiber optics here are intended for plastic but I believe the system can also be applied to paper models!
  19. Patron_zero

    Patron_zero Member

    Any thoughts about having the wall surface behind the mounted model represent the tiled appearance of the Death Star ?


  20. Zathros

    Zathros Guest

    The bulkhead looks like it was perfect for the wires. I can't wait to see this baby a lit up! :)
