Building 12

Discussion in 'Scratchin' & Bashin'' started by eightyeightfan1, Dec 1, 2003.

  1. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

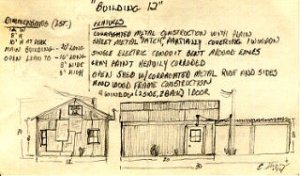

    Last night in the chat, someone mentioned trackside structures. Here is a drawing, kinda crude, of a building I made while working at Sikorsky Aircraft. It was an out building, next to the blade test stand. The drawing was what I could see from a window, as I didn't have clearence to get much closer. The dims are all estimated. I thought it would be a cool trackside structure, and did build it in N scale. But haven't found a decent pic of the completed model. So here it is, and as also mentioned in the chat......I am going to do one in HO scale!

    Attached Files:

  2. absnut

    absnut Member

    Thanks, Ed. The extension to the right... flat roof or pitched?
  3. Drew1125

    Drew1125 Active Member

    Great project, Ed!
    That's one of those industrial-type structures that would look great in many different settings!
    :cool: :cool: :cool:
  4. jmarksbery

    jmarksbery Active Member


    All I see is the red X, seeing a lot of that lately on here :confused: :cry: :cry:
  5. Matthyro

    Matthyro Will always be re-membered

    Jim, when I was having similar problems I found out it was my ISP that was at fault. I talked to them and since then everything is working well. No more red Xs for me these days.
  6. Fred_M

    Fred_M Guest

    From all the patches on that shed I guess Sikorsky was having problems keeping the blades where they belong? DX
  7. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

    Sorry I was late responding, was having trouble with the cable.:curse:

    Dick: Its a open lean to. Later on I found out it wasn't even attatched to the building, but stood on its own. Of course that was after I drew it and made my version.

    Dash10. With the shop being so close to the test stand...You should of heard the sound when a blade "Let Go".
  8. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

    HO Scale-Building 12

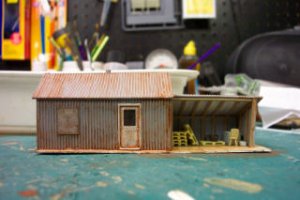

    Finished my HO scale version of Building 12. Here's a couple of pics.

    Attached Files:

  9. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

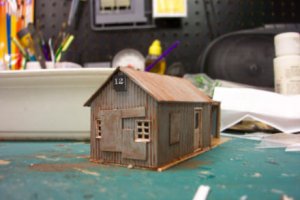

    3/4 veiw.

    Attached Files:

  10. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

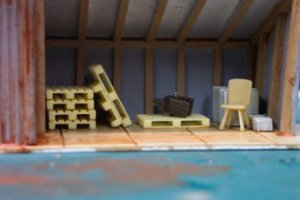

    A few things stored in the lean to part.

    Attached Files:

  11. absnut

    absnut Member

    Great work, Ed!!
  12. Lighthorseman

    Lighthorseman Active Member


    Really nicely done, Ed! :thumb: :thumb: :thumb:
  13. RailRon

    RailRon Active Member

    Ed, thats a great little shack!

    I love the rusty weathering of the corrugated walls. Expertly done!

  14. jimmybeersa

    jimmybeersa Member

    ED.... I love it about another ( crude ):p :p sketch with the HO measurement..... Please Thats some very good weathering:thumb: :thumb: :thumb: :thumb:
  15. CN1

    CN1 Active Member

    :thumb: :thumb:
  16. shamus

    shamus Registered Member

    Hi Ed, Very very nice looking structure.:thumb:
  17. Arlaghan

    Arlaghan Member

    Very cool! Nicely done. Is that a little fridge behind that chair? ;)
