BSG Chariot by Revell Fan

ASC Mclaren

Well-Known Member

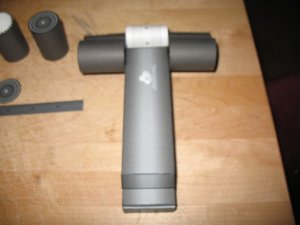

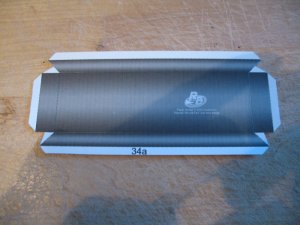

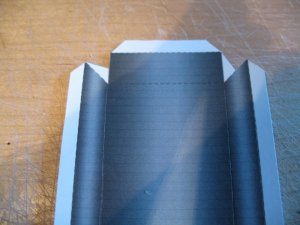

Turns out my printer was low on magenta, how did you know Zathros? I have some more pictures of the build. Notice that on part 34a the tabs are not symmetrical side to side. Not an issue, just note before you cut.


Attachments

  • IMG_2325.jpg
    153.4 KB · Views: 5
  • IMG_2326.jpg
    155.1 KB · Views: 5
  • IMG_2324.jpg
    150.1 KB · Views: 6
  • IMG_2322.jpg
    135.1 KB · Views: 6
  • IMG_2327.jpg
    167.3 KB · Views: 6
Z

Zathros

Turns out my printer was low on magenta, how did you know Zathros? I have some more pictures of the build. Notice that on part 34a the tabs are not symmetrical side to side. Not an issue, just note before you cut.

Not Zathros, is Draal, and Great Machines, he reaches far out, sees Boo Boo, sees printer, sees the One! :twisted:


Rhaven Blaack

!!!THE MAN BEHIND THE CURTAIN!!!
Staff member
Administrator
Moderator
So far, so good.
At 1:18 scale, that is going to be one big chariot.
Who do you have to operate it (once it is finisned, that is)?


ASC Mclaren

Well-Known Member
So far, so good.
At 1:18 scale, that is going to be one big chariot.
Who do you have to operate it (once it is finisned, that is)?
Well, there is Adama, and then I have a couple of custom colonial warriors.. Of course I learned that when repainting action figures, use acrylic, not enamel paints. Enamel paints don't dry. I guess my warriors are wet behind the ears :mrgreen:

I should have more pictures to post tomorrow.


ASC Mclaren

Well-Known Member
The forthcoming pictures are still forthcoming. Cutting all the road wheels parts took longer then I thought....


ASC Mclaren

Well-Known Member

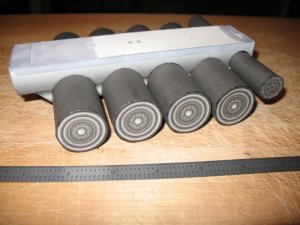

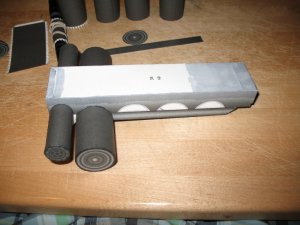

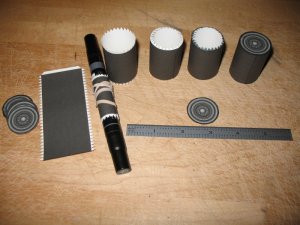

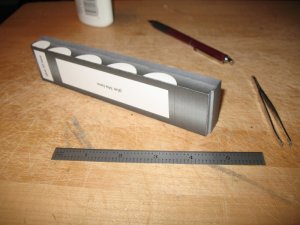

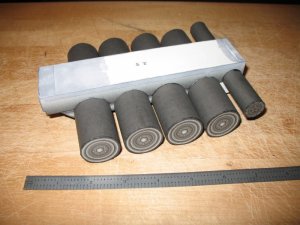

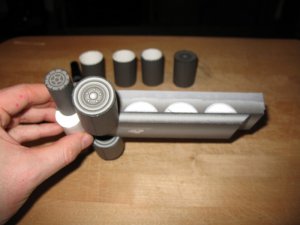

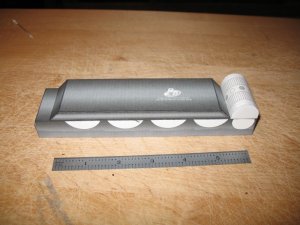

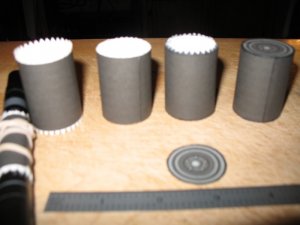

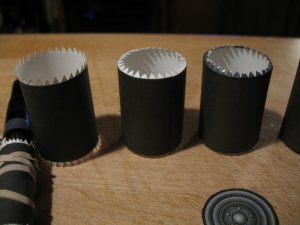

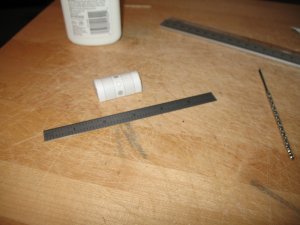

Well, here are six of the fifthcoming photos. This series is the road wheel build. I scored the tabs, then cut the parts out. Then roll around a form, glue. Fold the scored tabs then color the edges (barrels and caps). Glue end cap, allow to dry, glue other cap, dry. Then glue to part 34. Next is the track....


Attachments

  • IMG_2328.jpg
    186 KB · Views: 5
  • IMG_2333.jpg
    118 KB · Views: 5
  • IMG_2330.jpg
    89 KB · Views: 5
  • IMG_2334.jpg
    86.7 KB · Views: 5
  • IMG_2335.jpg
    94.4 KB · Views: 7
  • IMG_2336.jpg
    159.8 KB · Views: 7

Rhaven Blaack

!!!THE MAN BEHIND THE CURTAIN!!!
Staff member
Administrator
Moderator
It looks like it is coming together quite nicely.
The most tedious part has still yet to come you on this build, THE TREADS!

Keep up the great work.


ASC Mclaren

Well-Known Member
It looks like it is coming together quite nicely.
The most tedious part has still yet to come you on this build, THE TREADS!

Keep up the great work.
Thank you! The treads of the Chariot are not cleated, so it should build much easier then the Landram :mrgreen:


Revell-Fan

Co-Administrator
Staff member
Administrator
Moderator
Thank you! The treads of the Chariot are not cleated, so it should build much easier then the Landram :mrgreen:
:mrgreen::mrgreen::mrgreen::mrgreen::mrgreen:!!!!!!

(To RB: Really, this is the way the treads look like. Unlike the Landram the chariot comes from tread heaven!!)

ASC, the build looks fantastic! I noticed the glue tab issue but thought it wouldn't be a big problem. Please continue!

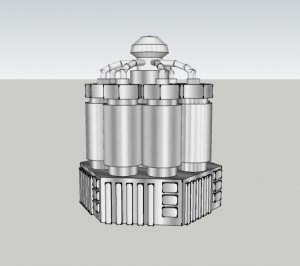

However, I noticed that an empty cargo area does not look that appealing. So I have made a little add-on: The energizer. :twisted:


Attachments

  • energizer.jpg
    30.1 KB · Views: 9

Rhaven Blaack

!!!THE MAN BEHIND THE CURTAIN!!!
Staff member
Administrator
Moderator
:mrgreen::mrgreen::mrgreen::mrgreen::mrgreen:!!!!!!

(To RB: Really, this is the way the treads look like. Unlike the Landram the chariot comes from tread heaven!!)

ASC, the build looks fantastic! I noticed the glue tab issue but thought it wouldn't be a big problem. Please continue!

However, I noticed that an empty cargo area does not look that appealing. So I have made a little add-on: The energizer. :twisted:

The energizer looks like it will make a good addition to the kit as a whole.
I am looking forward to adding this to my collection.


ASC Mclaren

Well-Known Member
That looks just like Siress Belloby's energizer! very nice! I had some ideas about filling the bed of the Chariot. Thank you again, RF!


Vince

Member
Sorry 'bout the Boo-Boo on your finger. Crazy glue works great on really clean cuts like that. It also has great for it's anti-biotic properties. :)

I thought Crazy glue (cyanoacrylate) was toxic? Everyone seems scared of the stuff nowadays.

My boss got a chunk of her ear cut during a haircut, and the emergency room used some kind of egg-protein based superglue.


ASC Mclaren

Well-Known Member
A few more pictures tonight:


Attachments

  • IMG_2341.jpg
    174.7 KB · Views: 6
  • IMG_2342.jpg
    166.1 KB · Views: 6
  • IMG_2337.jpg
    125.2 KB · Views: 6
  • IMG_2338.jpg
    131.9 KB · Views: 6
  • IMG_2339.jpg
    125.3 KB · Views: 6
  • IMG_2340.jpg
    127.5 KB · Views: 6

ASC Mclaren

Well-Known Member

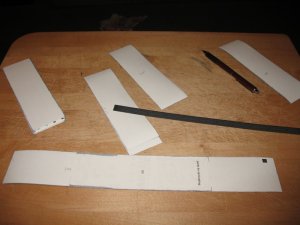

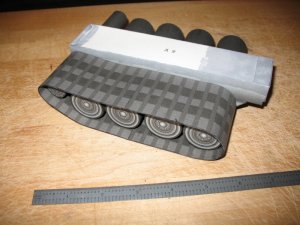

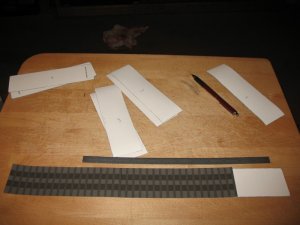

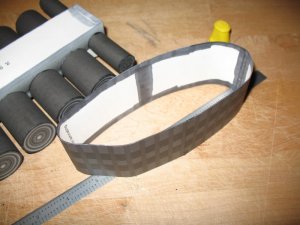

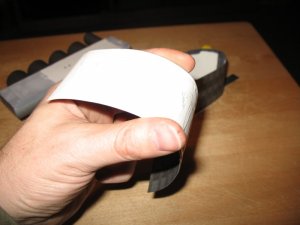

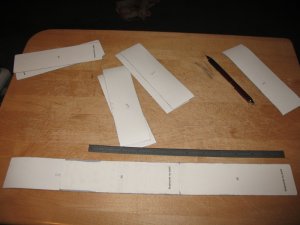

This may not be the best way to build these tracks, but it's what I did on this side. I'll try something slightly different on the other side, but that must wait for tomorrow.


Attachments

  • IMG_2343.jpg
    143.7 KB · Views: 4
  • IMG_2344.jpg
    97.3 KB · Views: 4
  • IMG_2345.jpg
    183.1 KB · Views: 6

Rhaven Blaack

!!!THE MAN BEHIND THE CURTAIN!!!
Staff member
Administrator
Moderator
It looks like it is coming together quite nicely.
You are doing a great job on it.
